Drop-in Replacement for Most European-Style Gear Units
Radicon's robust range of modular gearboxes provide our customers with interchangeability and flexibility to meet their needs. The Series M In-Line Helical, Series C Right Angle Helical Worm, Series F Parallel Shaft-Mounted Helical, and Series K Right Angle Helical Bevel gearboxes are suitable for several drop-in replacement applications for most European-style gear reducers.
Series M Inline Helical
The Series M inline helical gear unit provides a very efficient and compact drive solution to meet drive requirements up to 215 horsepower with a maximum output torque of 177,000 lb-in. Can be supplied as double, triple, quadruple and quintuple reduction units in flange or foot mount execution. Available as motor ready (to accept client’s own IEC / NEMA motor) or as a reducer with a keyed input shaft.
Series C Right Angle Helical Worm
The Series C right angle helical worm gear unit provides a highly efficient and compact solution to meet requirements up to 60 horsepower with maximum output torque capacity of 88,500 lb-in. Can be supplied as double, triple, quadruple, and quintuple reduction units in flange, foot mount, or shaft mount execution with output options to include hollow or extended output shafts. Available as motor ready (to accept client’s own IEC / NEMA motor) or as a reducer with a keyed input shaft.
Series F Parallel Shaft-Mounted Helical
The Series F gear unit offers a shaft mounted solution with an integral torque reaction bracket to meet requirements up to 147 horsepower with maximum output torque capacity of 146,000 lb-in. The units are also available with rubber torque bushes, output flanges, output shafts and KIBO® sleeves to allow for trouble free maintenance. Can be supplied as double, triple, quadruple, and quintuple reduction units in flange or shaft-mount execution. Available as motor ready (to accept client’s IEC / NEMA motor) or as a reducer with a keyed input shaft.

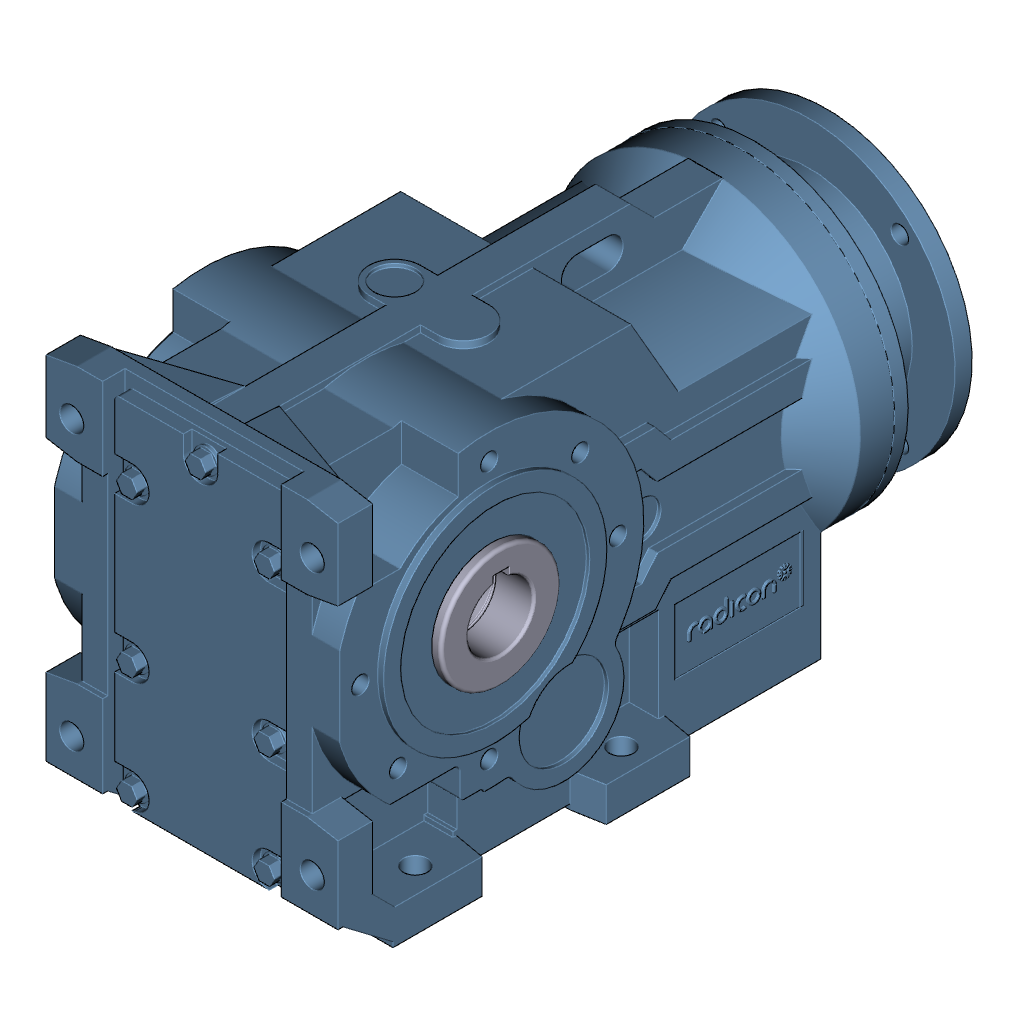

Series K Right Angle Helical Bevel
The Series K right angle helical bevel gear units have high load carrying capacities, increased efficiency over worm units, quiet running and reliability. The Series K gear unit is designed with integral cast feet for base or end mounting and can be offered with single or double extended output shafts, also available with hollow shaft. Units are also available shaft mounted or with output flanges and are available for mounting horizontally or vertically. The units can also be offered with a bolt on torque reaction bracket. Can be supplied as triple and quintuple reduction units in flange, foot mount, or shaft mount execution. Available as motor ready (to accept client’s IEC / NEMA motor) or as a reducer with a keyed input shaft.
