TEFC Motors: What They Are and Why They’re Preferred in Industrial Settings

Jul 10

When selecting a motor for your industrial application, the enclosure type matters just as much as the horsepower or voltage rating. One of the most trusted motor enclosures in harsh environments is the TEFC motor, short for Totally Enclosed Fan Cooled.

In this article, we’ll explain what TEFC motors are, how they work, their benefits, and why they’re often the first choice in manufacturing plants, food processing, and dusty environments.

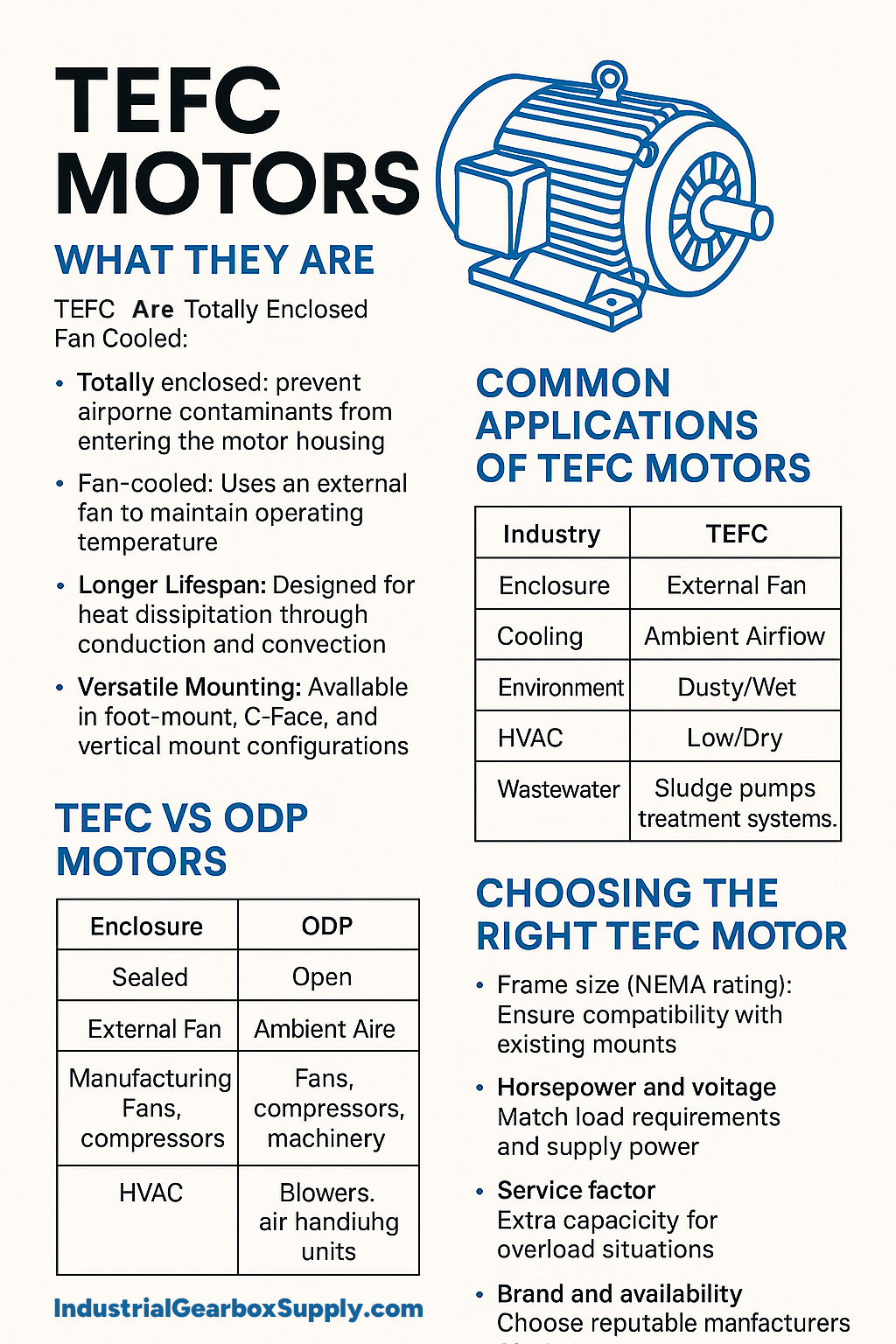

What is a TEFC Motor?

A TEFC motor is a type of enclosed electric motor designed to prevent outside air and contaminants—such as dust, dirt, oil, and moisture—from entering the internal components. It has no open ventilation slots but instead uses a built-in fan mounted on the rear shaft to blow air over the motor’s ribbed surface, helping it dissipate heat externally.

Key Features of TEFC Motors:

Totally enclosed: Prevents airborne contaminants from entering the motor housing.
Fan cooled: Uses an external fan to maintain operating temperature.
Ribbed frame: Designed for heat dissipation through conduction and convection.

Benefits of Using TEFC Motors

TEFC motors are highly sought after in rugged industrial settings due to their enhanced protection and longevity. Here’s why they’re often preferred over open motor designs:

Dust & Moisture Resistance: Ideal for woodworking, mining, grain handling, and outdoor environments.
Lower Maintenance: No need for frequent internal cleaning like open motors.
Longer Lifespan: Less exposure to contaminants means fewer mechanical and electrical failures.
Versatile Mounting: Available in foot-mount, C-face, and vertical mount configurations.

Common Applications of TEFC Motors

Because of their sealed construction, TEFC motors are often used in the following industries and applications:


      Industry
      Application

      Food & Beverage
      Conveyors, mixers, pumps

      Agriculture
      Grain elevators, augers

      Manufacturing
      Fans, compressors, machinery

      HVAC
      Blowers, air handling units

      Wastewater
      Sludge pumps, treatment systems

TEFC vs ODP Motors

Open Drip Proof (ODP) motors are common in clean indoor environments but lack protection against airborne debris. Unlike TEFC motors, ODP motors allow outside air to circulate inside for cooling, which can damage internal parts if contaminants are present.

Comparison Table:


      Feature
      TEFC
      ODP

      Enclosure
      Sealed
      Open

      Cooling
      External Fan
      Ambient Airflow

      Environment
      Dusty/Wet
      Clean/Dry

      Maintenance
      Low
      Medium

Choosing the Right TEFC Motor

When selecting a TEFC motor, make sure to consider:

Frame size (NEMA rating): Ensure compatibility with existing mounts.
Horsepower and voltage: Match load requirements and supply power.
Service factor: Extra capacity for overload situations.
Brand and availability: Choose reputable manufacturers like ABB for durability and support.

Why Choose ABB TEFC Motors?

ABB’s NEMA low voltage TEFC motors are known for their robust design, energy efficiency, and reliability. Many models meet NEMA Premium® efficiency standards, reducing operational costs over time. ABB motors are widely available and trusted in the harshest environments worldwide.

Get TEFC Motors from Industrial Gearbox Supply

If you're looking for durable, high-performance TEFC motors from trusted brands like ABB, contact Industrial Gearbox Supply. We offer competitive pricing, fast shipping, and expert support to help you find the right motor for your needs.

Contact us today:

Phone: (517) 858-2966
Email: sales@industrialgearboxsupply.com
Location: 3590 Scheele Dr, Jackson, MI 49202

Chandra Dhopatkar
