ODP Motors: What They Are, Advantages, and When to Use Them
When choosing a motor for your application, understanding the type of enclosure is critical. One of the most common and cost-effective options is the ODP motor, short for Open Drip Proof. These motors are widely used in indoor, clean, and dry environments, especially in HVAC systems, fans, and pumps.
This article breaks down what ODP motors are, how they differ from other enclosures like TEFC, and the ideal scenarios where they outperform other types.

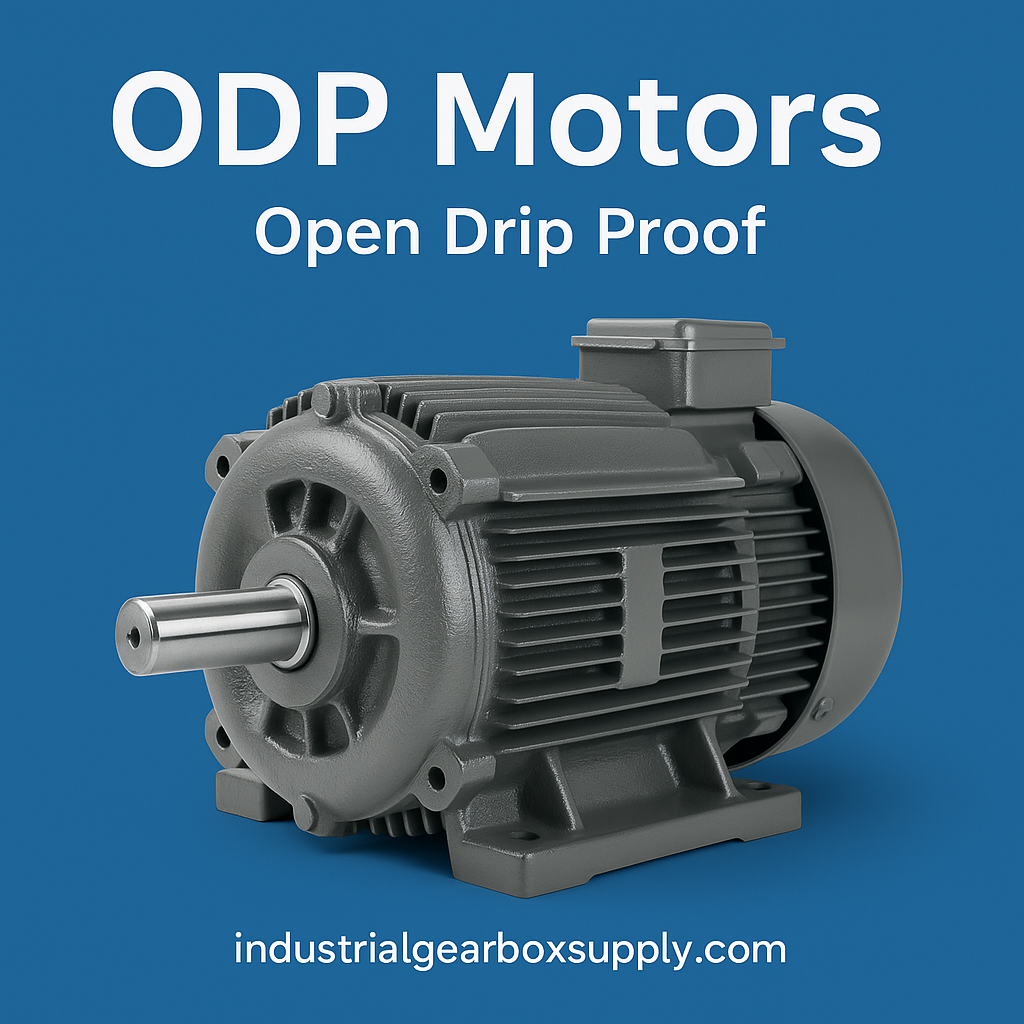

What Is an ODP Motor?
ODP (Open Drip Proof) motors are electric motors designed with open slots in the motor casing to allow air to flow directly through the motor windings. This airflow helps cool the motor efficiently, but it also makes the motor more vulnerable to moisture, dust, and debris.
Key Features of ODP Motors:
Open ventilation: Allows air to pass through the motor for cooling.
Drip protection: Designed to prevent water from dripping in from above (but not fully sealed).
Efficient cooling: Greater airflow allows the motor to stay cool in clean environments.
Lightweight and affordable: Typically more compact and cost-effective than enclosed motors.
Advantages of ODP Motors
ODP motors are not suitable for every environment, but in the right setting, they offer several compelling advantages:
Lower Cost: Generally less expensive than TEFC motors or enclosed alternatives.
Better Cooling Efficiency: Natural airflow keeps the motor cooler.
Easier Maintenance: Accessible parts make service easier in clean environments.
Lightweight: Compact designs are easier to install and integrate.
Common Applications for ODP Motors
You’ll most often find ODP motors in indoor applications with controlled air quality. These environments don’t pose a high risk of contamination or moisture.
| Industry | Common Applications |
|---|---|
| HVAC | Air handlers, exhaust fans, blowers |
| Manufacturing | Machine tools, conveyors (indoor) |
| Office & Retail Buildings | Heating and ventilation systems |
| Educational Facilities | Indoor mechanical systems |
| Clean Workshops | Motors in dry, climate-controlled areas |
ODP vs TEFC Motors: What’s the Difference?
While both ODP and TEFC motors serve specific roles, it’s crucial to know when one is better suited than the other.
| Feature | ODP | TEFC |
|---|---|---|
| Cooling Method | Open airflow through motor | External fan + enclosed frame |
| Protection Level | Drip-proof, limited protection | Fully enclosed against dust/moisture |
| Maintenance Needs | Medium | Low |
| Ideal Environment | Clean, indoor, dry | Dirty, wet, or outdoor |
| Cost | Lower | Higher |
Choosing the Right ODP Motor
Before choosing an ODP motor, consider the following:
Location: Use only in dry, clean, indoor environments.
Mounting: Match your NEMA frame and base type.
Power & Speed: Make sure it meets your torque and RPM requirements.
Manufacturer Support: Reputable brands like ABB offer reliable ODP motors backed by warranty and service.
Why Choose ABB ODP Motors?
ABB’s NEMA Low Voltage ODP motors are designed for efficient performance in controlled environments. They offer high reliability, excellent airflow, and full compliance with industry standards. ABB’s engineering ensures that even these more economical motors meet strict durability and energy efficiency requirements.
Get ODP Motors from Industrial Gearbox Supply
Whether you’re replacing an indoor fan motor or building out a new HVAC system, we carry a full line of ABB ODP motors ready to ship. Our team at Industrial Gearbox Supply can help you find the perfect fit for your application—at a competitive price.
