What Are NEMA Electric Motors? A Guide for Industrial Buyers
When choosing an electric motor for industrial applications, understanding the NEMA standard can save time, money, and ensure seamless integration with your equipment.
In this article, we’ll break down what NEMA electric motors are, why they matter, and how ABB’s low voltage motors meet the highest industrial standards.
🔌 What Is a NEMA Electric Motor?
A NEMA electric motor is one that complies with the standards established by the National Electrical Manufacturers Association (NEMA). These standards ensure interchangeability, safety, and consistent performance across manufacturers.
Key characteristics include:
Standardized frame sizes
Consistent shaft dimensions
Defined mounting configurations
Uniform performance ratings (HP, RPM, voltage)
NEMA standards make it easy to replace or upgrade motors without needing custom adapters or modifications.

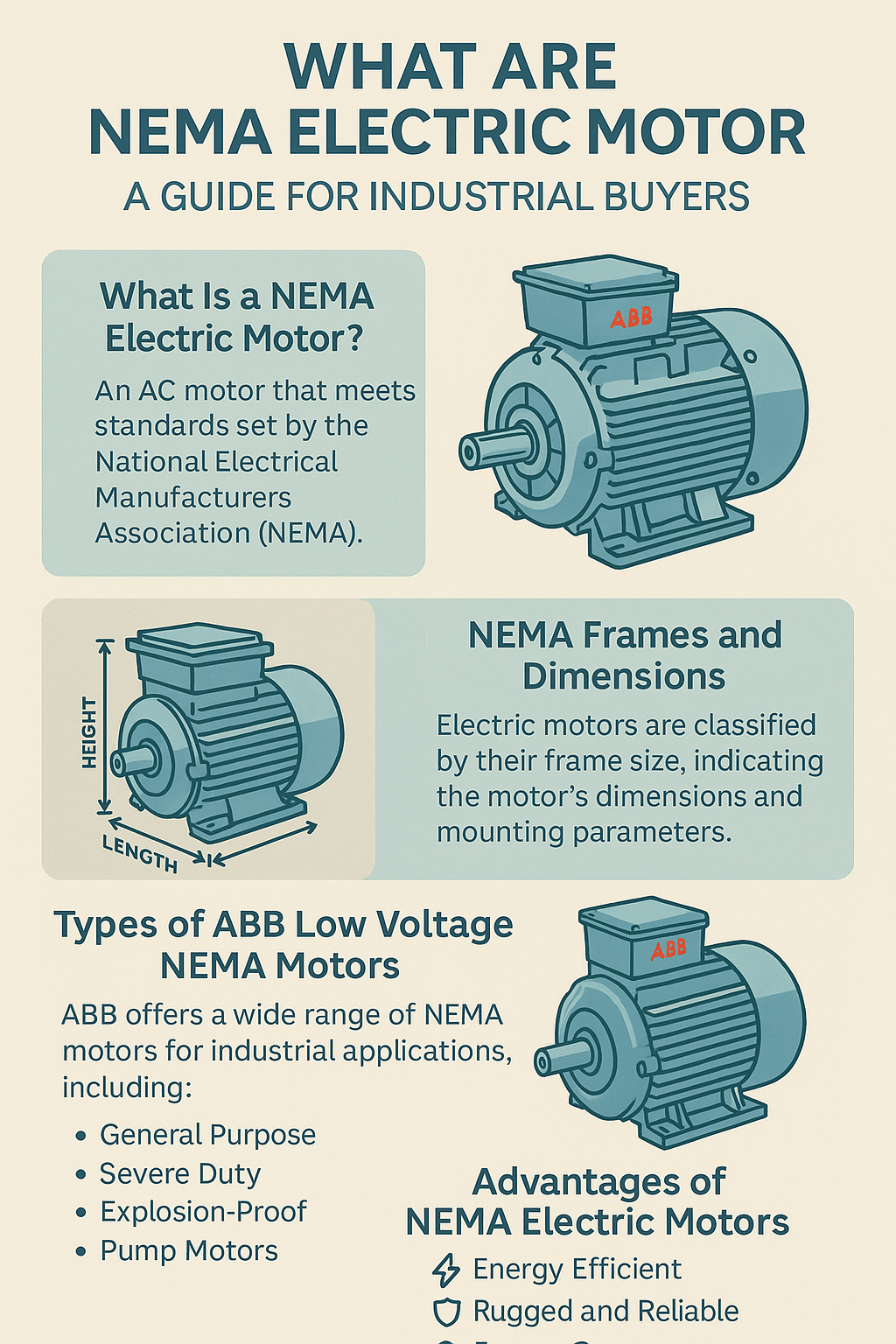

What are NEMA electric motors?
📏 NEMA Frame Sizes and Why They Matter
Frame size is the foundation of motor selection. Each frame size (e.g., NEMA 56, 143T, 184T) includes standard physical dimensions, such as:
Shaft height
Bolt pattern
Shaft diameter
Overall length
For example:
A NEMA 56 frame motor is common for small equipment like HVAC fans.
A NEMA 184T motor might be used in conveyors or industrial pumps.
Choosing the correct frame ensures proper mechanical fitment—especially when replacing existing equipment.
⚙️ ABB’s Role in NEMA Motor Manufacturing
ABB is a global leader in industrial motor design and engineering. Their NEMA low voltage motors are trusted in manufacturing, energy, agriculture, and beyond.
ABB NEMA Motor Features:
High energy efficiency (meets or exceeds NEMA Premium® efficiency levels)
Heavy-duty construction for harsh environments
Available in Open Drip Proof (ODP), Totally Enclosed Fan Cooled (TEFC), and Explosion-Proof enclosures
Dual frequency ratings (50/60Hz)
ABB motors are known for long lifespans and easy integration in both new and retrofit systems.
🏭 Common Applications of NEMA Electric Motors
HVAC Systems
Pumps (water, slurry, chemical)
Compressors
Conveyors
Machine tools
Fans and blowers
With a wide horsepower range and voltage options, NEMA motors support everything from light-duty fans to high-torque industrial machinery.
Advantages of Choosing NEMA-Standard Motors
| Benefit | Description |
|---|---|
| 🔁 Interchangeability | Easily replace existing motors without reengineering. |
| 🛠️ Serviceability | Widely available parts and repair knowledge. |
| ⚡ Energy Efficiency | NEMA Premium® motors reduce energy costs. |
| 🧱 Rugged Design | Ideal for demanding industrial environments. |
| 📏 Sizing Consistency | Frame dimensions remain standard across brands. |
🧲 Why NEMA Matters for Industrial Buyers
Standardization simplifies everything—ordering, installing, replacing, and maintaining motors. It lowers total cost of ownership and reduces downtime. ABB’s NEMA motors not only meet the standard—they raise the bar for reliability and performance.
