B021110.WAQUA

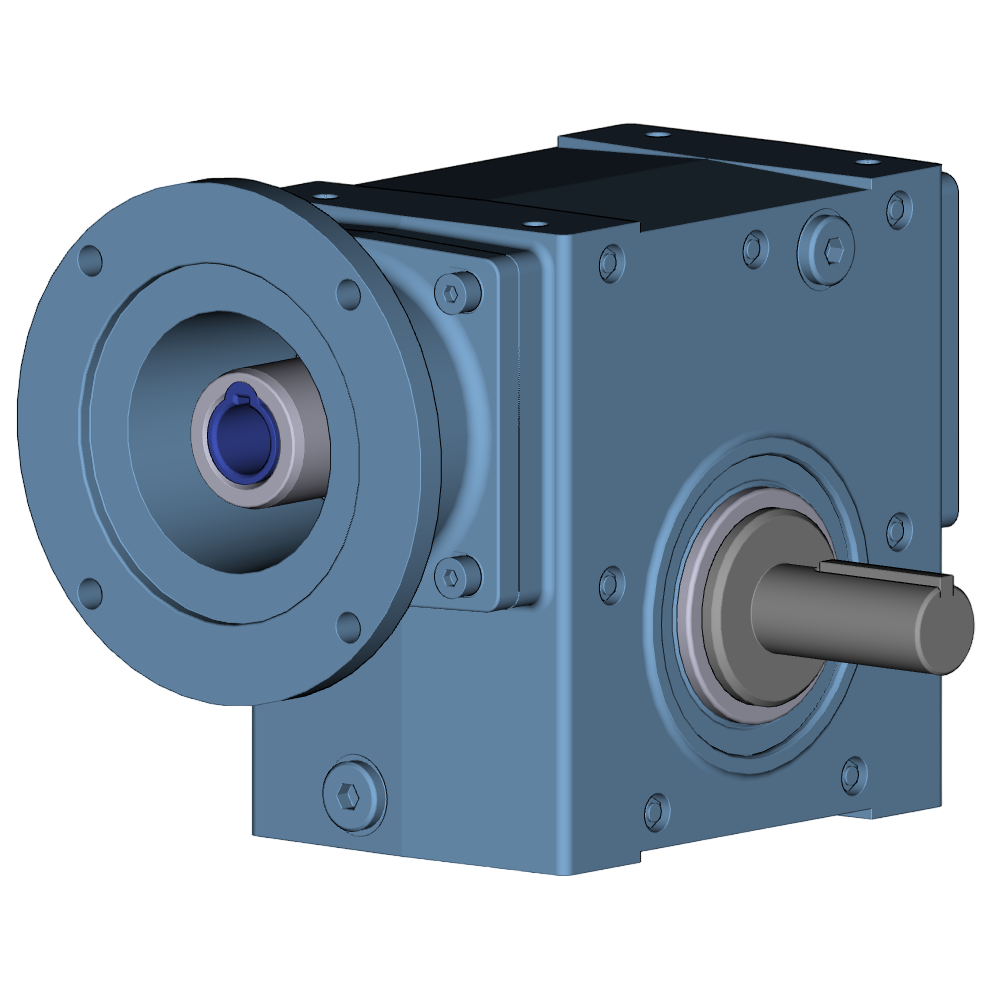

Cone Drive Right Angle Worm Gearbox

• 1.33" Center Distance

• 10:1 Ratio

• NEMA 56C Motor Adapter Input

• 0.625" Right Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 175

• Maximum Input Horsepower: 1.05

• Maximum Output Torque: 308 lb-in

• Efficiency: 82%
