B021120.WAQWA

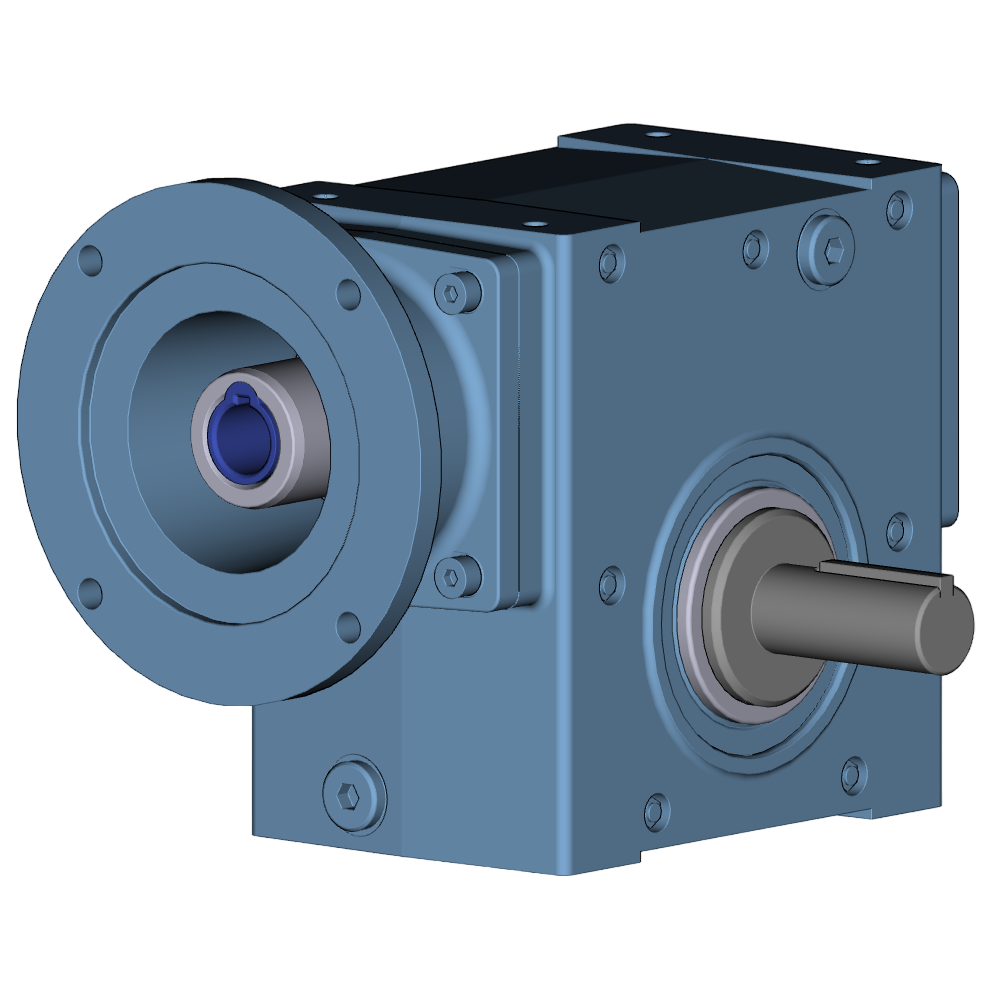

Cone Drive Right Angle Worm Gearbox

• 1.33" Center Distance

• 20:1 Ratio

• NEMA 140TC Motor Adapter Input

• 0.625" Right Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 88

• Maximum Input Horsepower: 0.62

• Maximum Output Torque: 319 lb-in

• Efficiency: 71%

3D File

2D Dimensional PDF

Additional Resources
