B021120.WARW1

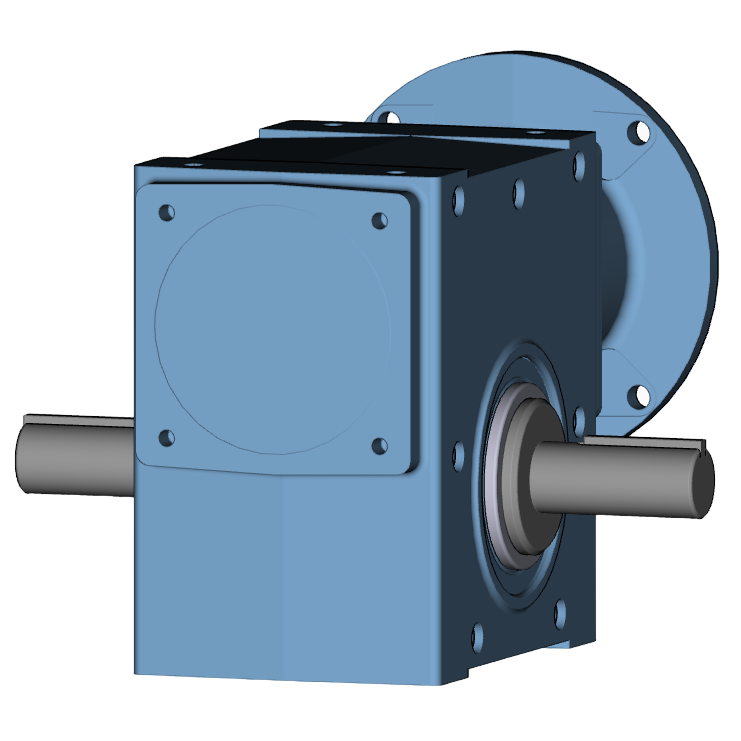

Cone Drive Right Angle Worm Gearbox
1.33" Center Distance
20:1 Ratio
NEMA 140TC Motor Adapter Input
0.625" Double Extended Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 88
Maximum Input Horsepower: 0.62
Maximum Output Torque: 319 lb-in
Efficiency: 71%
