B021130.WAEU1

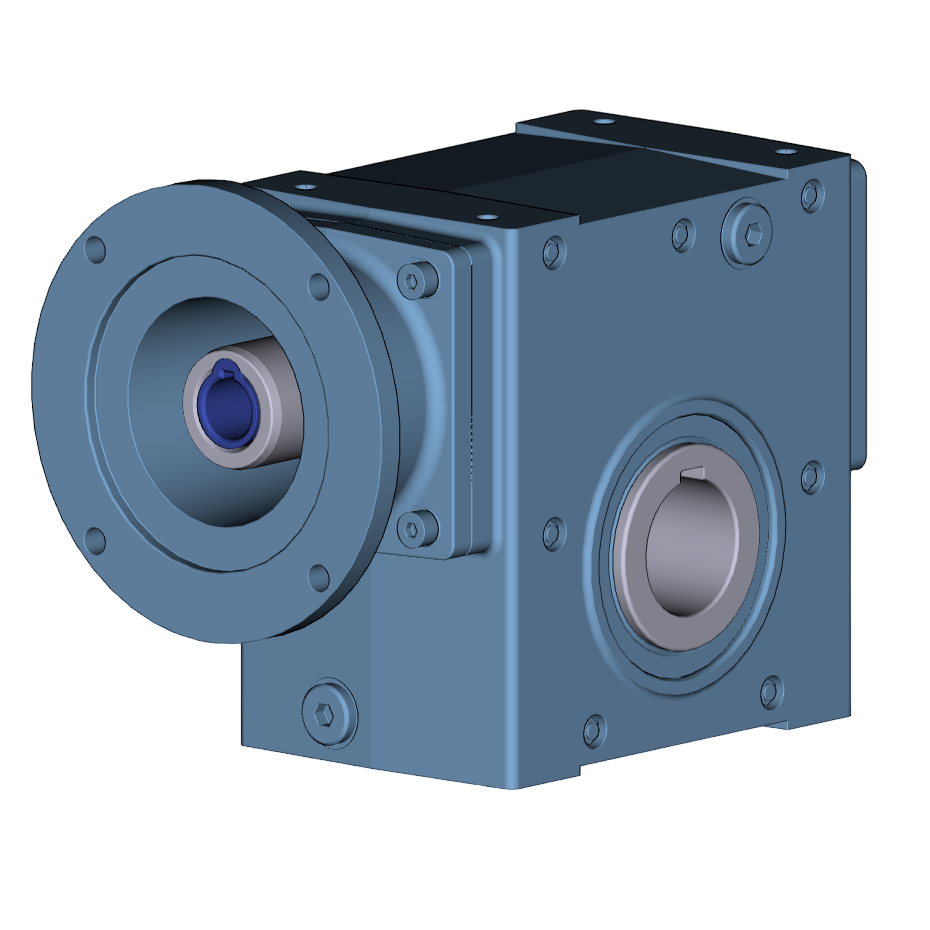

Cone Drive Right Angle Worm Gearbox
1.33" Center Distance
30:1 Ratio
NEMA 56C Motor Adapter Input
0.625" Hollow Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 58
Maximum Input Horsepower: 0.49
Maximum Output Torque: 332 lb-in
Efficiency: 63%
