B021140.WRM-1
$441.92

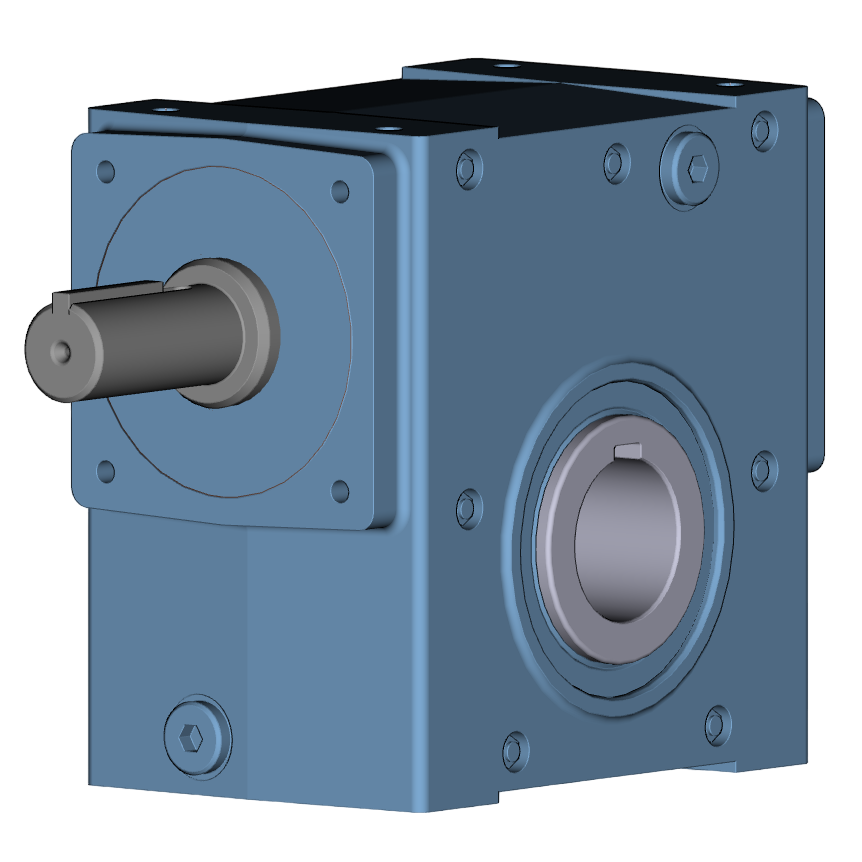

Cone Drive Right Angle Worm Gearbox
1.33" Center Distance
40:1 Ratio
0.625" Solid Input Shaft
20mm" Hollow Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 44
Maximum Input Horsepower: 0.38
Maximum Output Torque: 298 lb-in
Efficiency: 55%
Quantity:
Cone Drive Right Angle Worm Gearbox
1.33" Center Distance
40:1 Ratio
0.625" Solid Input Shaft
20mm" Hollow Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 44
Maximum Input Horsepower: 0.38
Maximum Output Torque: 298 lb-in
Efficiency: 55%
