B021140.WRQ-A

$521.71

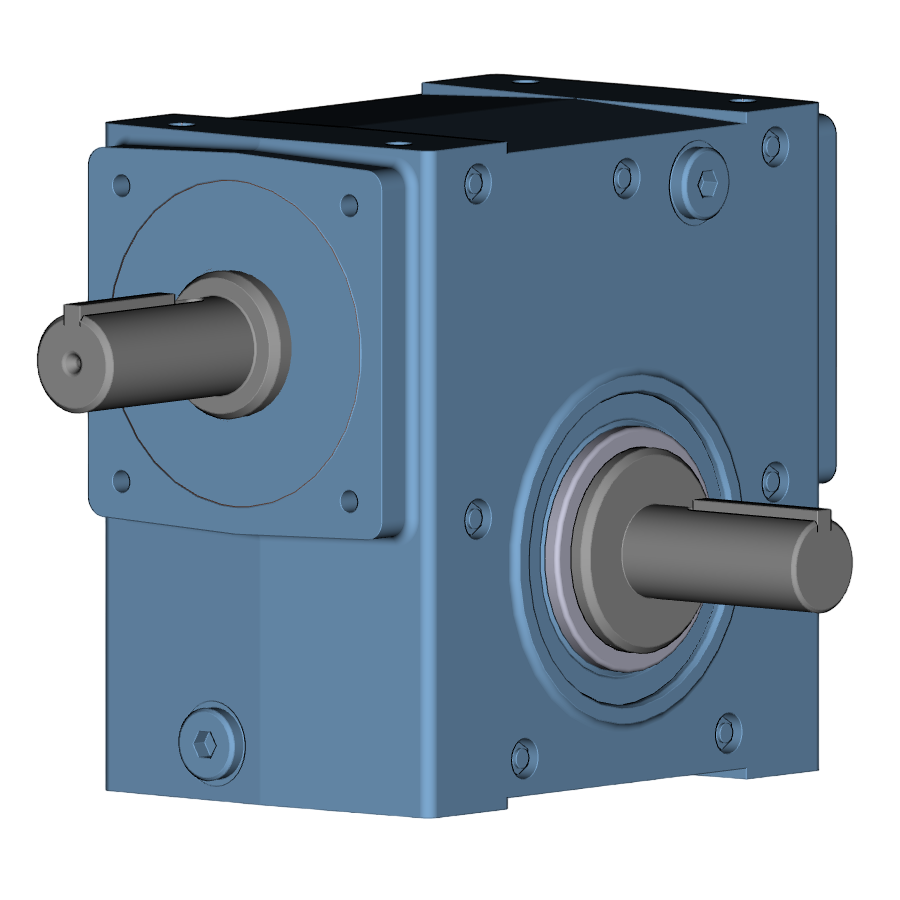

Cone Drive Right Angle Worm Gearbox

  • 1.33" Center Distance

  • 40:1 Ratio

  • 0.625" Solid Input Shaft

  • 0.625" Right Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

  • Output Speed (RPM): 44

  • Maximum Input Horsepower: 0.38

  • Maximum Output Torque: 298 lb-in

  • Efficiency: 55%

3D File

2D Dimensional PDF

Additional Resources

Quantity:
Add To Cart
