B02115.0WRN-A

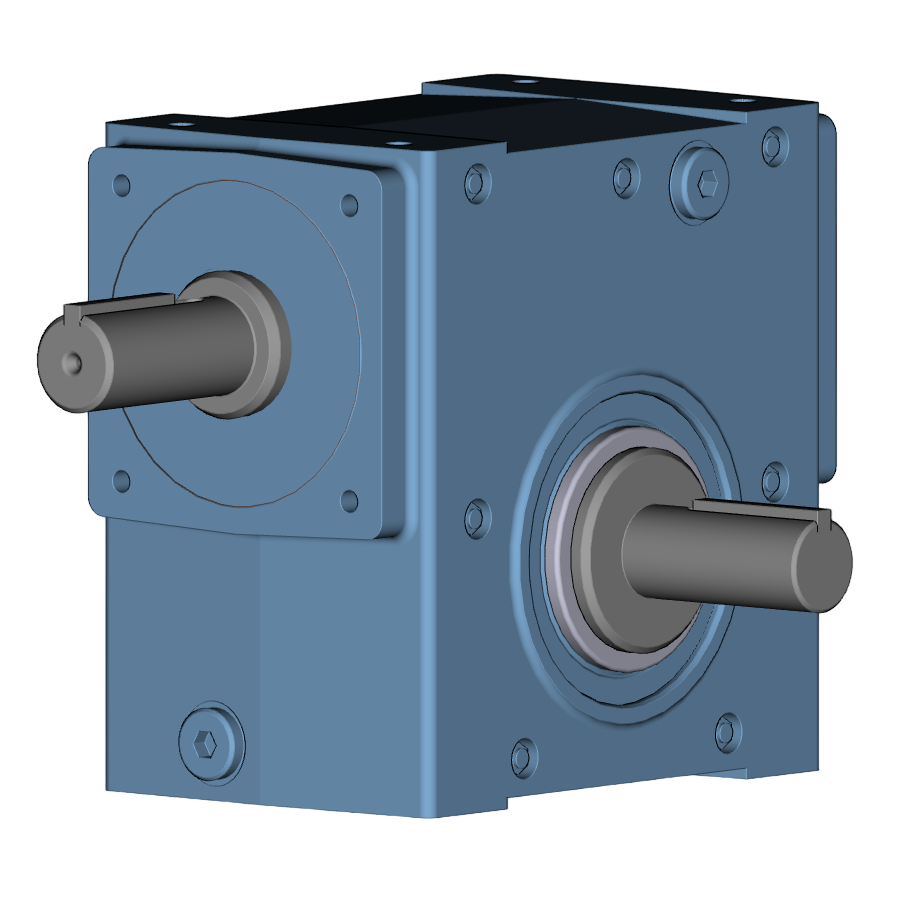

Cone Drive Right Angle Worm Gearbox

• 1.33" Center Distance

• 5:1 Ratio

• 0.625" Solid Input Shaft

• 0.75" Right Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 350

• Maximum Input Horsepower: 1.76

• Maximum Output Torque: 275 lb-in

• Efficiency: 87%
