B021150.WAAW1

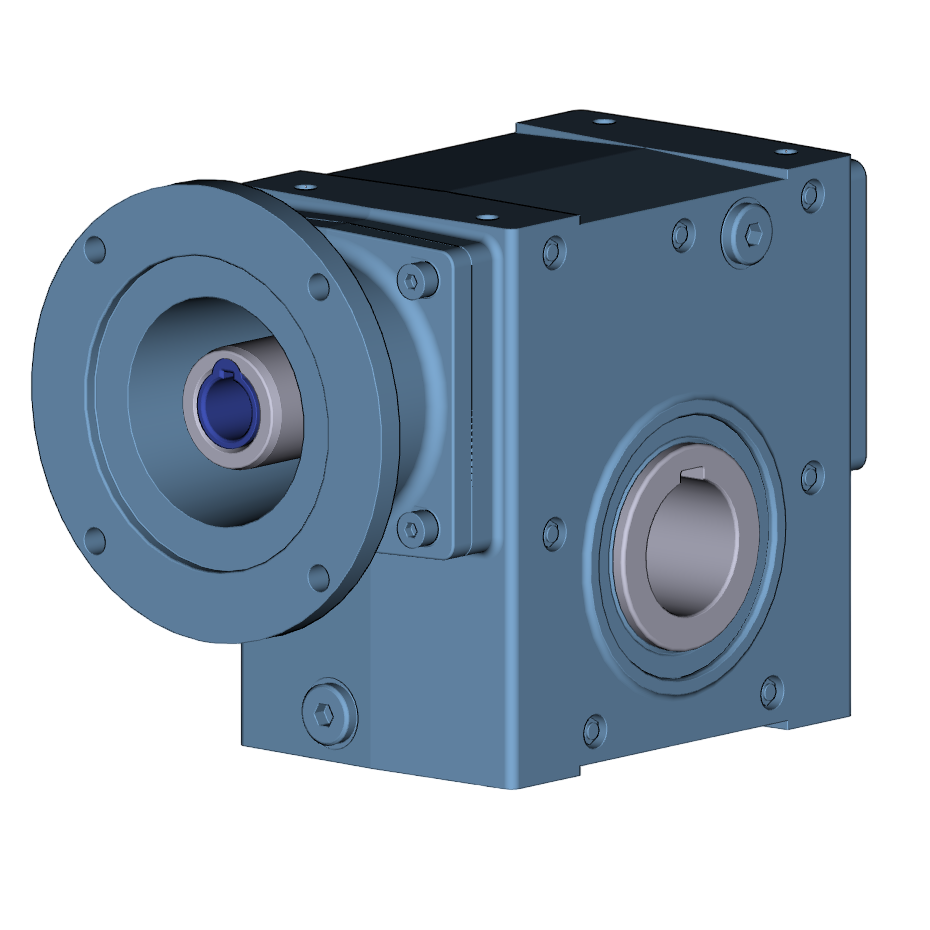

Cone Drive Right Angle Worm Gearbox
1.33" Center Distance
50:1 Ratio
NEMA 140TC Motor Adapter Input
1.00" Hollow Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 35
Maximum Input Horsepower: 0.33
Maximum Output Torque: 291 lb-in
Efficiency: 49%
Cone Drive Right Angle Worm Gearbox
1.33" Center Distance
50:1 Ratio
NEMA 140TC Motor Adapter Input
1.00" Hollow Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 35
Maximum Input Horsepower: 0.33
Maximum Output Torque: 291 lb-in
Efficiency: 49%
Cone Drive Right Angle Worm Gearbox
1.33" Center Distance
50:1 Ratio
NEMA 140TC Motor Adapter Input
1.00" Hollow Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 35
Maximum Input Horsepower: 0.33
Maximum Output Torque: 291 lb-in
Efficiency: 49%
