B021150.WANUA

$584.32

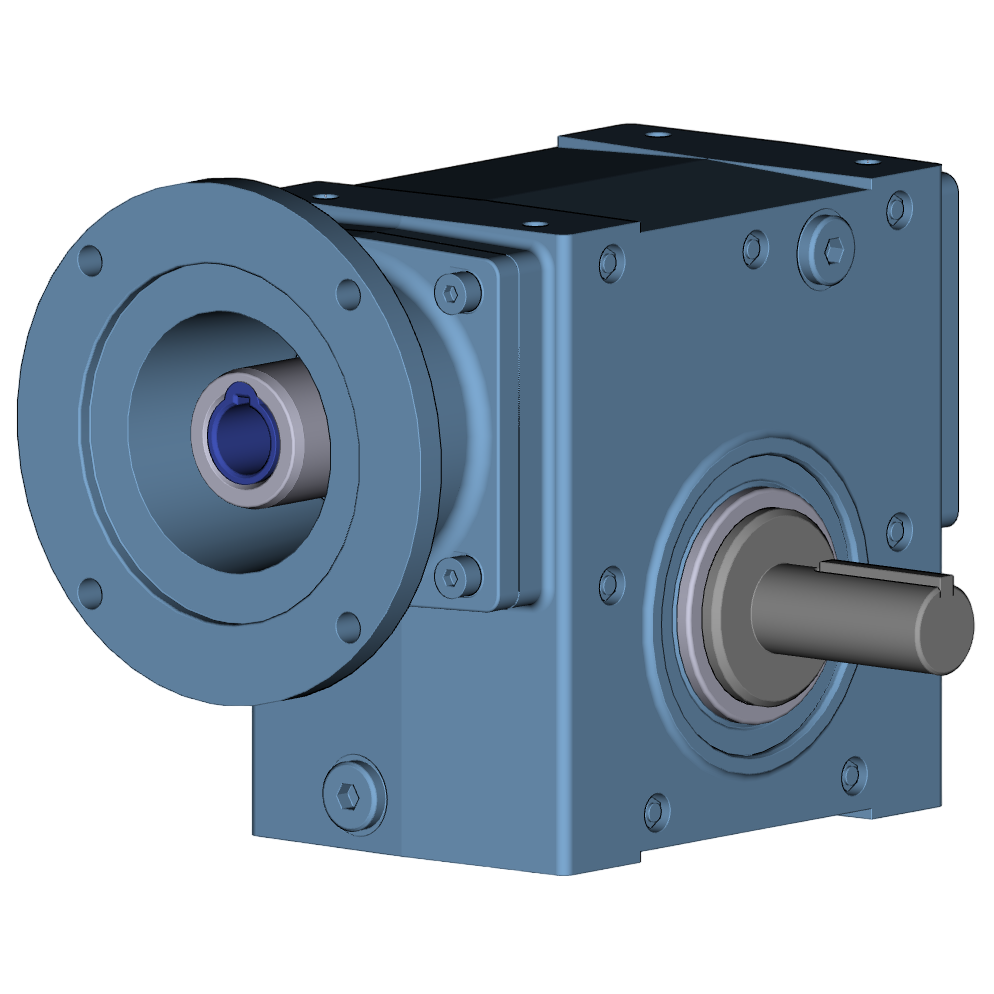

Cone Drive Right Angle Worm Gearbox

  • 1.33" Center Distance

  • 50:1 Ratio

  • NEMA 56C Motor Adapter Input

  • 0.75" Right Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

  • Output Speed (RPM): 35

  • Maximum Input Horsepower: 0.33

  • Maximum Output Torque: 291 lb-in

  • Efficiency: 49%

3D File

2D Dimensional PDF

Additional Resources

Quantity:
Add To Cart
