B021150.WRN-A

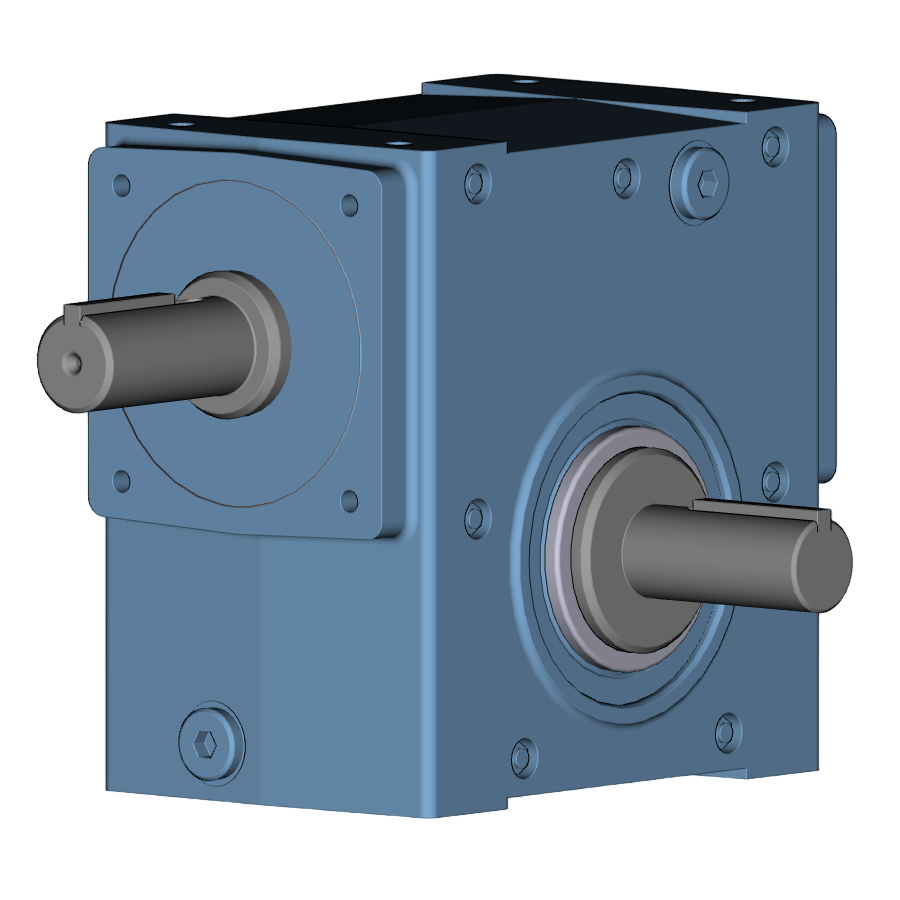

Cone Drive Right Angle Worm Gearbox
1.33" Center Distance
50:1 Ratio
0.625" Solid Input Shaft
0.75" Right Hand Extended Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 35
Maximum Input Horsepower: 0.33
Maximum Output Torque: 291 lb-in
Efficiency: 49%
