B021160.WAMU1

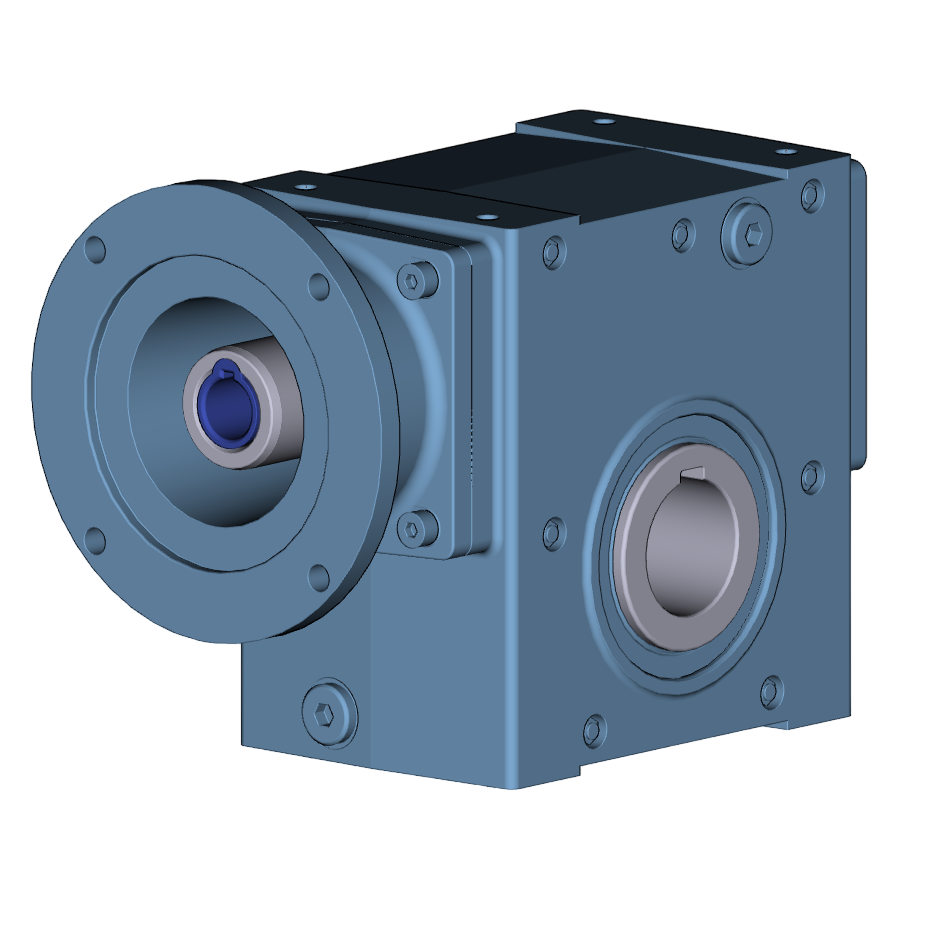

Cone Drive Right Angle Worm Gearbox
1.33" Center Distance
60:1 Ratio
NEMA 56C Motor Adapter Input
20mm" Hollow Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 29
Maximum Input Horsepower: 0.29
Maximum Output Torque: 272 lb-in
Efficiency: 43%
