B021160.WAQUB

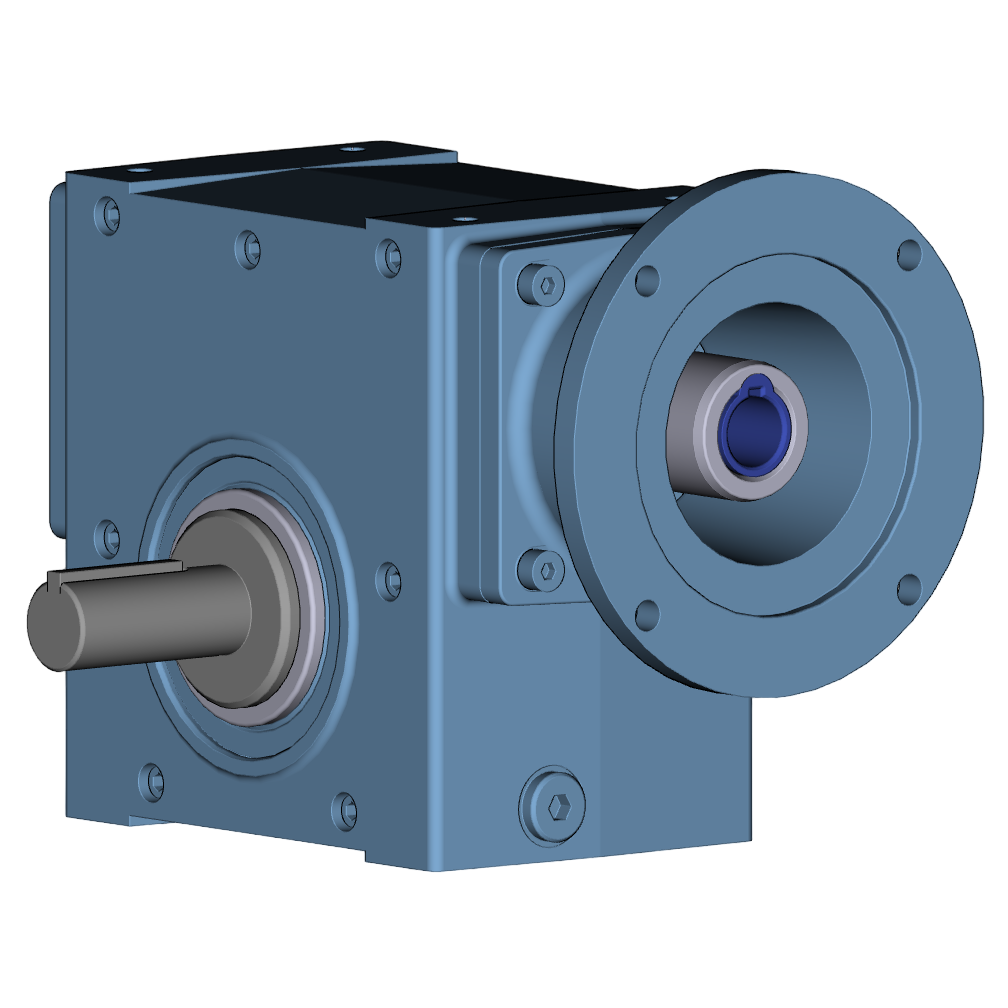

Cone Drive Right Angle Worm Gearbox

• 1.33" Center Distance

• 60:1 Ratio

• NEMA 56C Motor Adapter Input

• 0.625" Left Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 29

• Maximum Input Horsepower: 0.29

• Maximum Output Torque: 272 lb-in

• Efficiency: 43%
