B021160.WARU1

$626.04

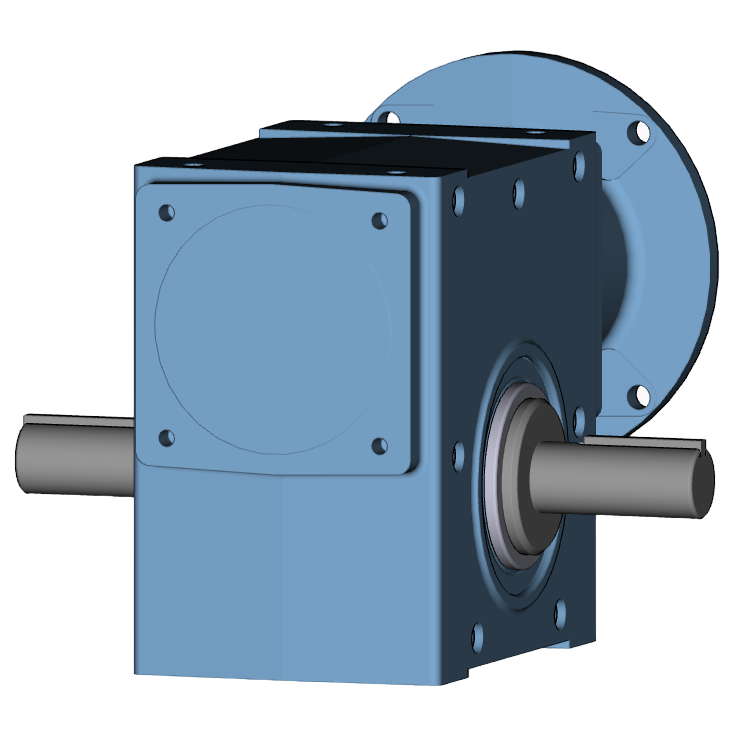

Cone Drive Right Angle Worm Gearbox

  • 1.33" Center Distance

  • 60:1 Ratio

  • NEMA 56C Motor Adapter Input

  • 0.625" Double Extended Output Shaft

Ratings Based On 1750 RPM Motor:

  • Output Speed (RPM): 29

  • Maximum Input Horsepower: 0.29

  • Maximum Output Torque: 272 lb-in

  • Efficiency: 43%

3D File

2D Dimensional PDF

Additional Resources

Quantity:
Add To Cart
