B021160.WRM-1

$441.92

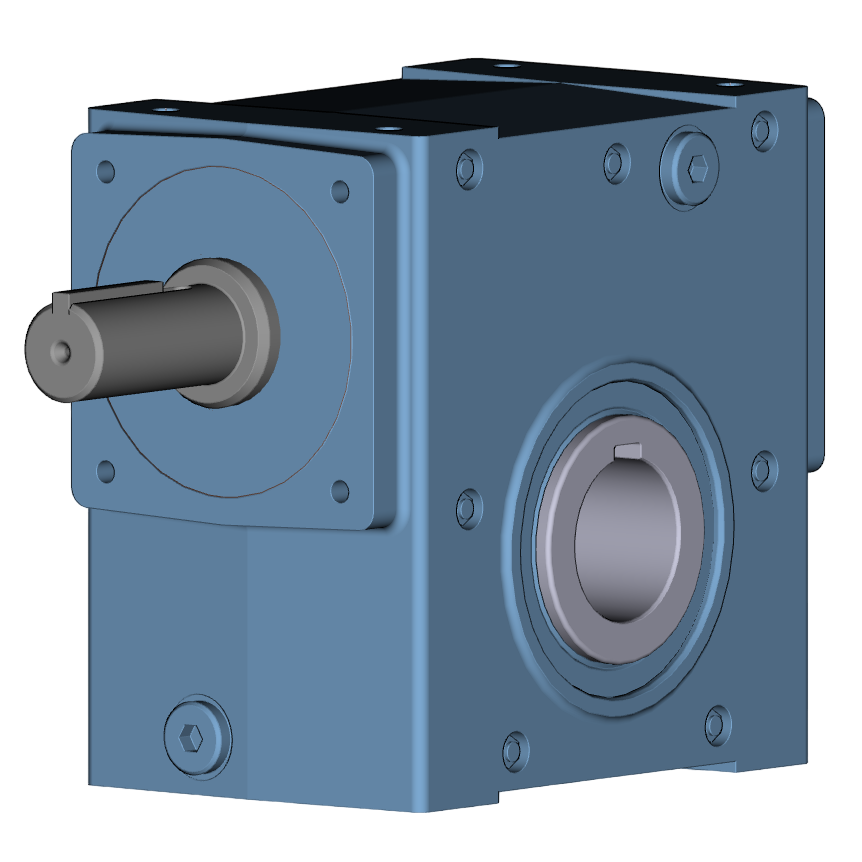

Cone Drive Right Angle Worm Gearbox

  • 1.33" Center Distance

  • 60:1 Ratio

  • 0.625" Solid Input Shaft

  • 20mm" Hollow Output Shaft

Ratings Based On 1750 RPM Motor:

  • Output Speed (RPM): 29

  • Maximum Input Horsepower: 0.29

  • Maximum Output Torque: 272 lb-in

  • Efficiency: 43%

3D File

2D Dimensional PDF

Additional Resources

Quantity:
Add To Cart
