B02117.5WARU1

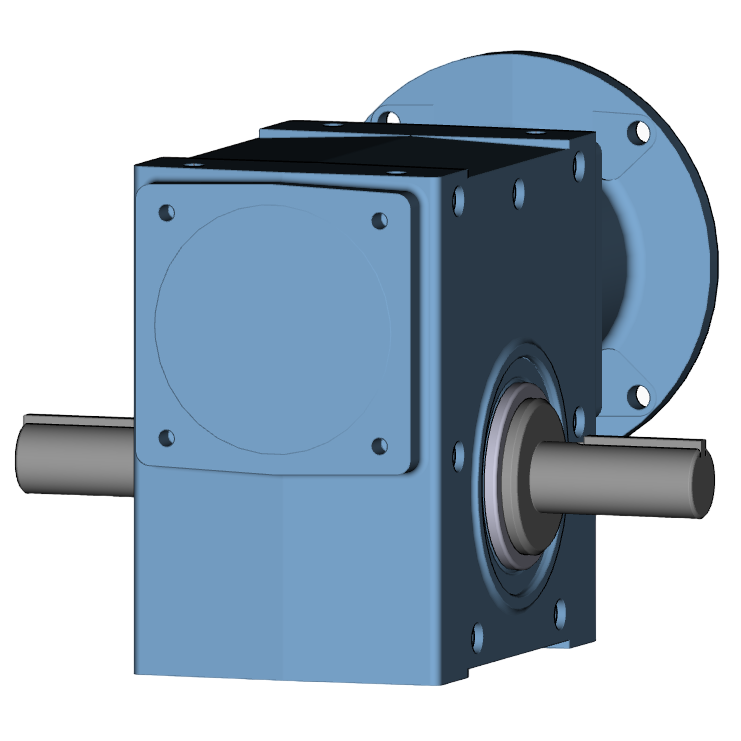

Cone Drive Right Angle Worm Gearbox

• 1.33" Center Distance

• 7.5:1 Ratio

• NEMA 56C Motor Adapter Input

• 0.625" Double Extended Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 233

• Maximum Input Horsepower: 1.3

• Maximum Output Torque: 296 lb-in

• Efficiency: 84%

3D File

2D Dimensional PDF

Additional Resources
