B031110.WANXA

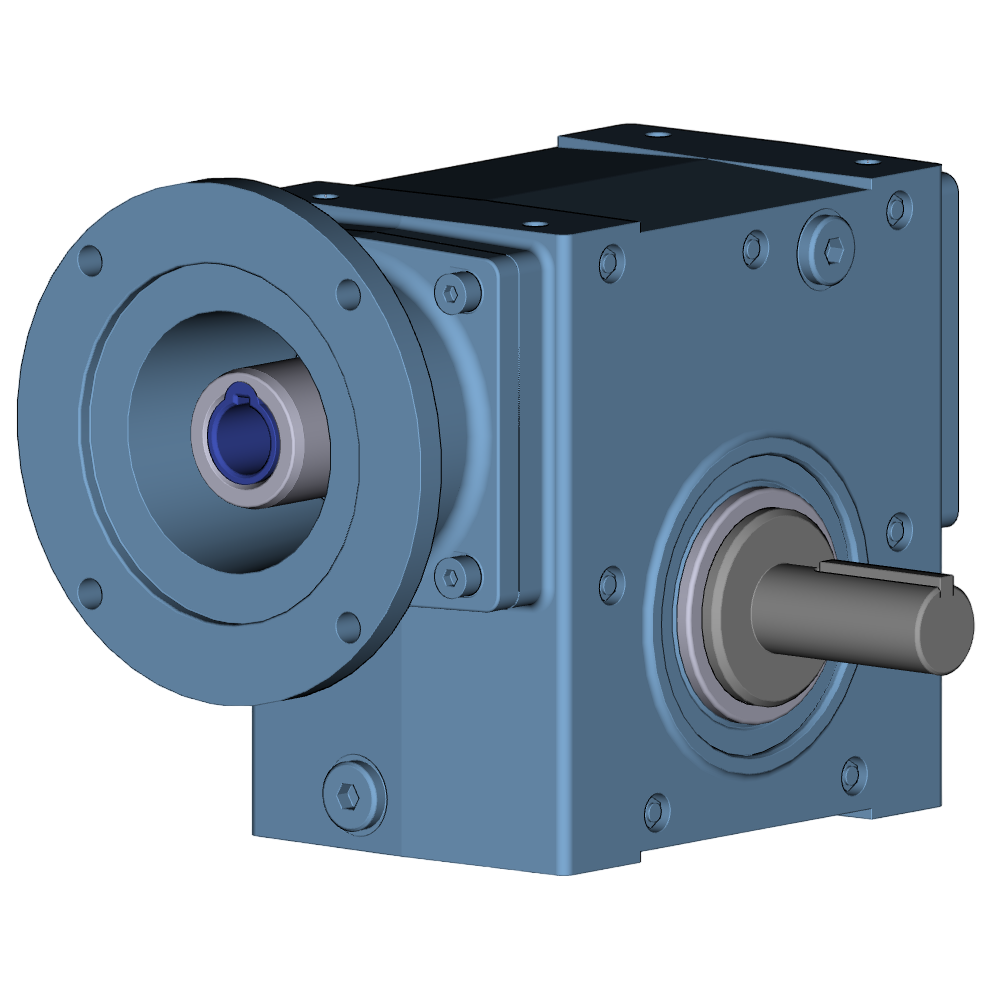

Cone Drive Right Angle Worm Gearbox

• 1.54" Center Distance

• 10:1 Ratio

• NEMA 180TC Motor Adapter Input

• 0.75" Right Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 175

• Maximum Input Horsepower: 1.47

• Maximum Output Torque: 446 lb-in

• Efficiency: 84%
