B031110.WAPV1

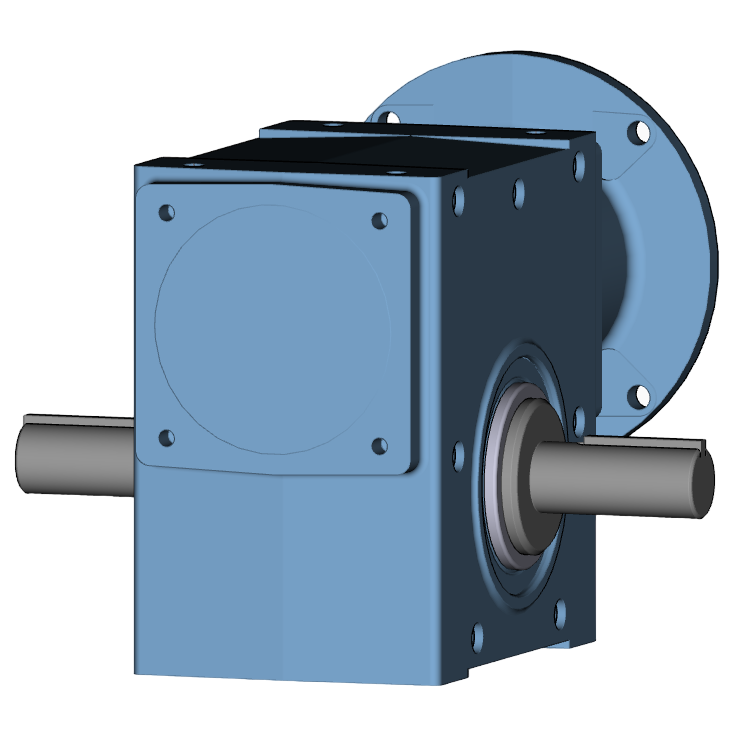

Cone Drive Right Angle Worm Gearbox
1.54" Center Distance
10:1 Ratio
NEMA 140TC Motor Adapter Input
0.75" Double Extended Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 175
Maximum Input Horsepower: 1.47
Maximum Output Torque: 446 lb-in
Efficiency: 84%
