B031115.WAFX1

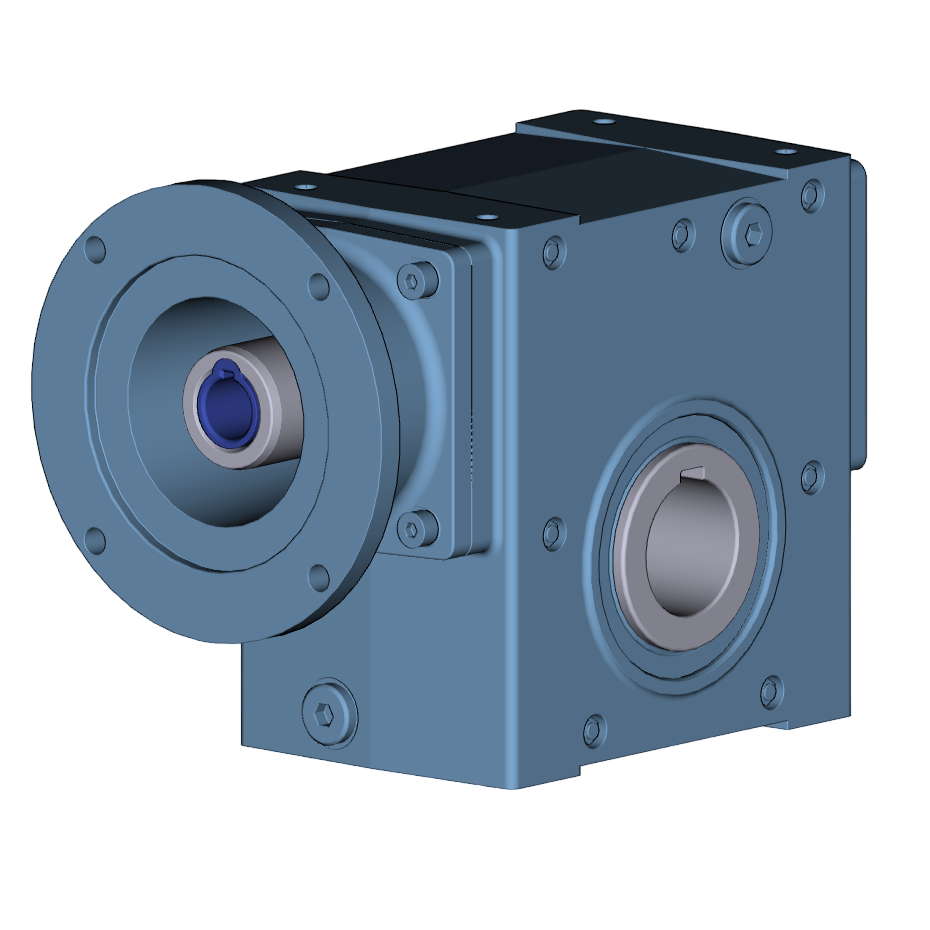

Cone Drive Right Angle Worm Gearbox
1.54" Center Distance
15:1 Ratio
NEMA 180TC Motor Adapter Input
0.875" Hollow Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 117
Maximum Input Horsepower: 1.11
Maximum Output Torque: 479 lb-in
Efficiency: 80%
