B031115.WAMV1

$549.43

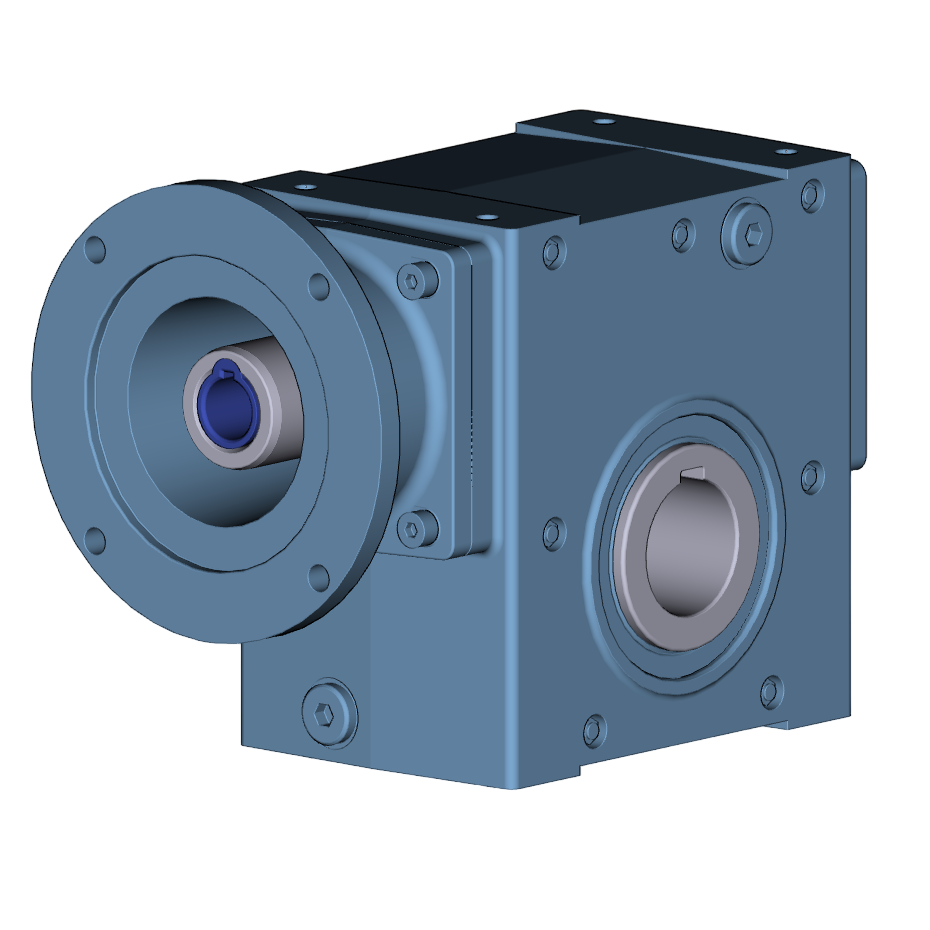

Cone Drive Right Angle Worm Gearbox

  • 1.54" Center Distance

  • 15:1 Ratio

  • NEMA 140TC Motor Adapter Input

  • 25mm" Hollow Output Shaft

Ratings Based On 1750 RPM Motor:

  • Output Speed (RPM): 117

  • Maximum Input Horsepower: 1.11

  • Maximum Output Torque: 479 lb-in

  • Efficiency: 80%

3D File

2D Dimensional PDF

Additional Resources

Quantity:
Add To Cart
