B031120.WANXB

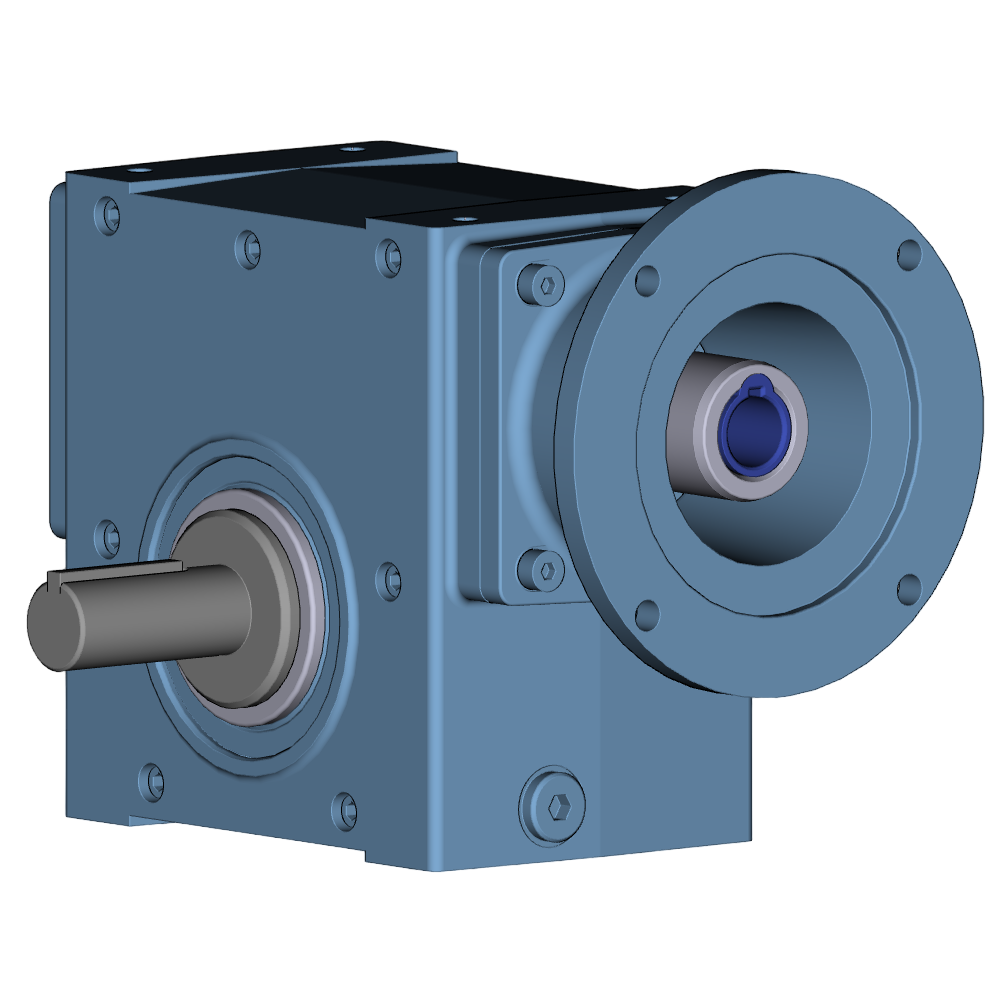

Cone Drive Right Angle Worm Gearbox

• 1.54" Center Distance

• 20:1 Ratio

• NEMA 180TC Motor Adapter Input

• 0.75" Left Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 88

• Maximum Input Horsepower: 0.88

• Maximum Output Torque: 476 lb-in

• Efficiency: 75%
