B031120.WAPX1

$614.48

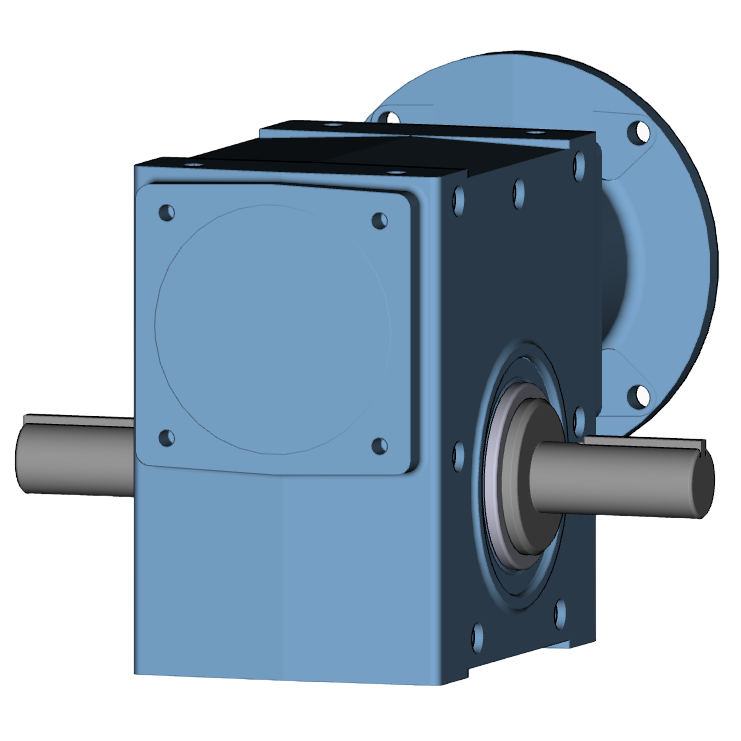

Cone Drive Right Angle Worm Gearbox

  • 1.54" Center Distance

  • 20:1 Ratio

  • NEMA 180TC Motor Adapter Input

  • 0.75" Double Extended Output Shaft

Ratings Based On 1750 RPM Motor:

  • Output Speed (RPM): 88

  • Maximum Input Horsepower: 0.88

  • Maximum Output Torque: 476 lb-in

  • Efficiency: 75%

3D File

2D Dimensional PDF

Additional Resources

Quantity:
Add To Cart
