B031125.WANVB

$604.68

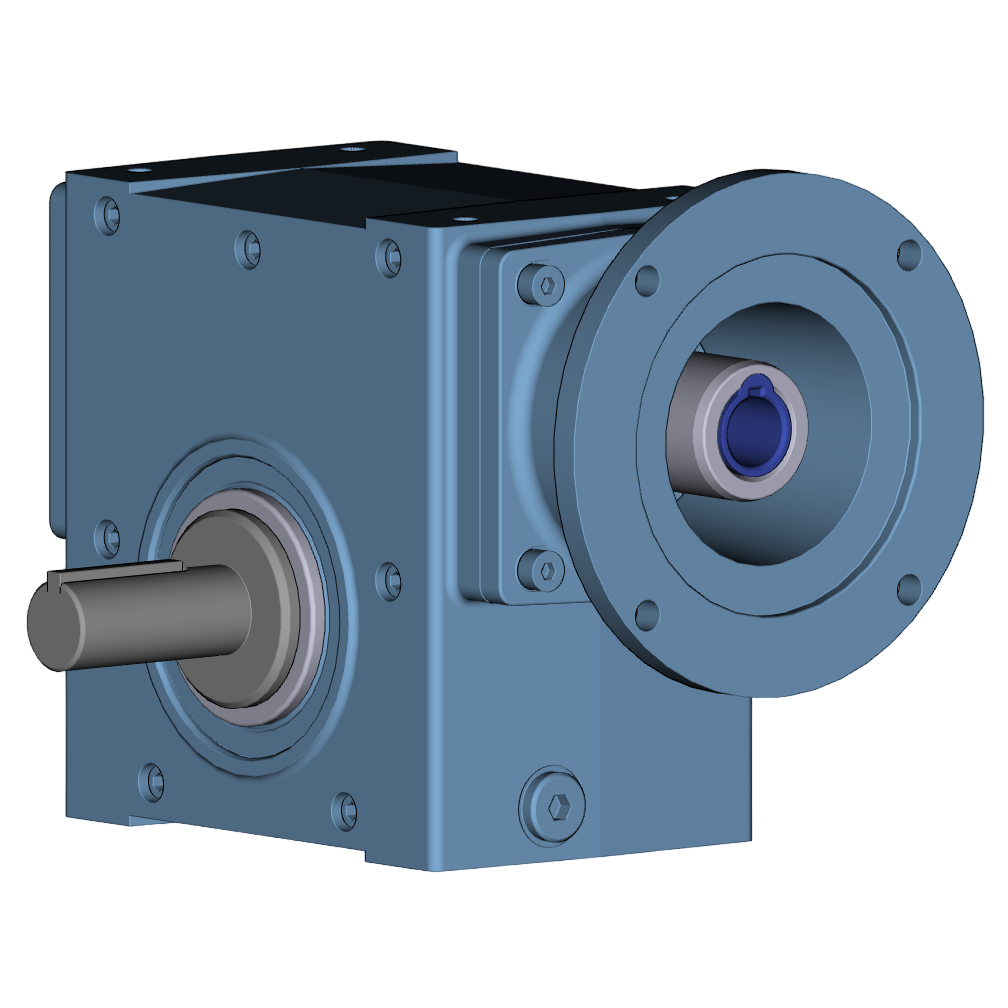

Cone Drive Right Angle Worm Gearbox

  • 1.54" Center Distance

  • 25:1 Ratio

  • NEMA 140TC Motor Adapter Input

  • 0.75" Left Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

  • Output Speed (RPM): 70

  • Maximum Input Horsepower: 0.79

  • Maximum Output Torque: 510 lb-in

  • Efficiency: 72%

3D File

2D Dimensional PDF

Additional Resources

Quantity:
Add To Cart
