B031130.WAFV1

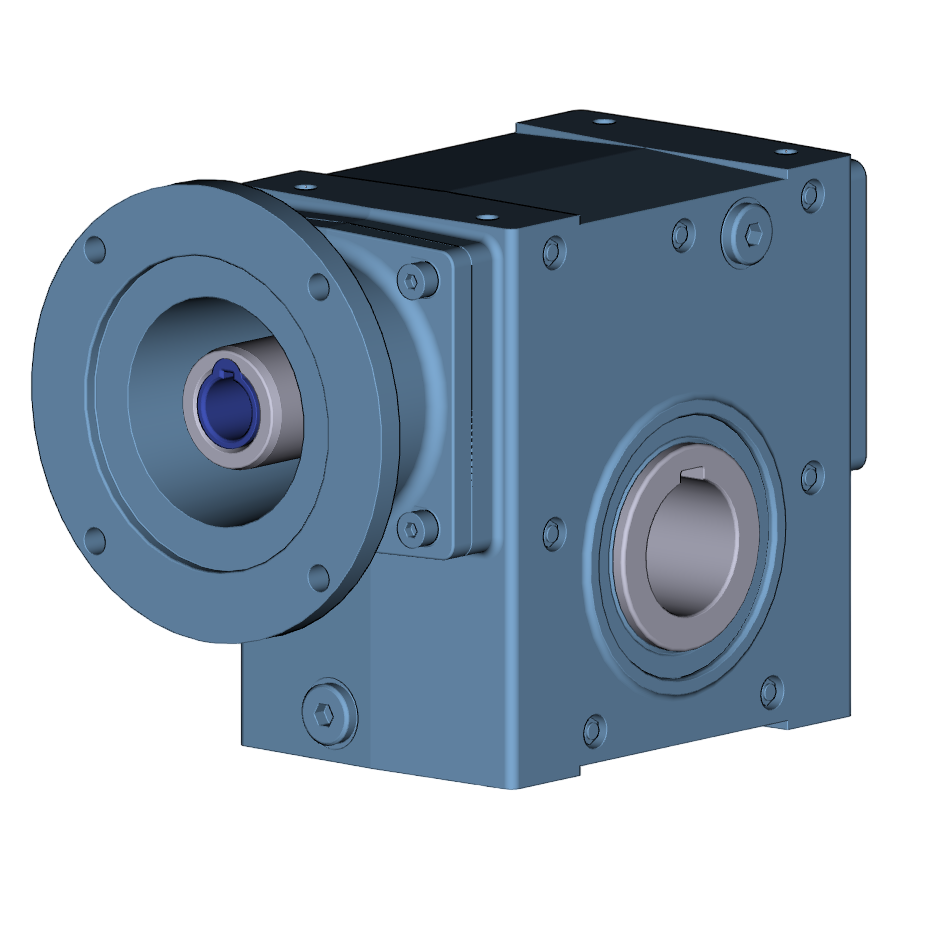

Cone Drive Right Angle Worm Gearbox
1.54" Center Distance
30:1 Ratio
NEMA 140TC Motor Adapter Input
0.875" Hollow Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 58
Maximum Input Horsepower: 0.67
Maximum Output Torque: 494 lb-in
Efficiency: 68%
