B031130.WRN-A

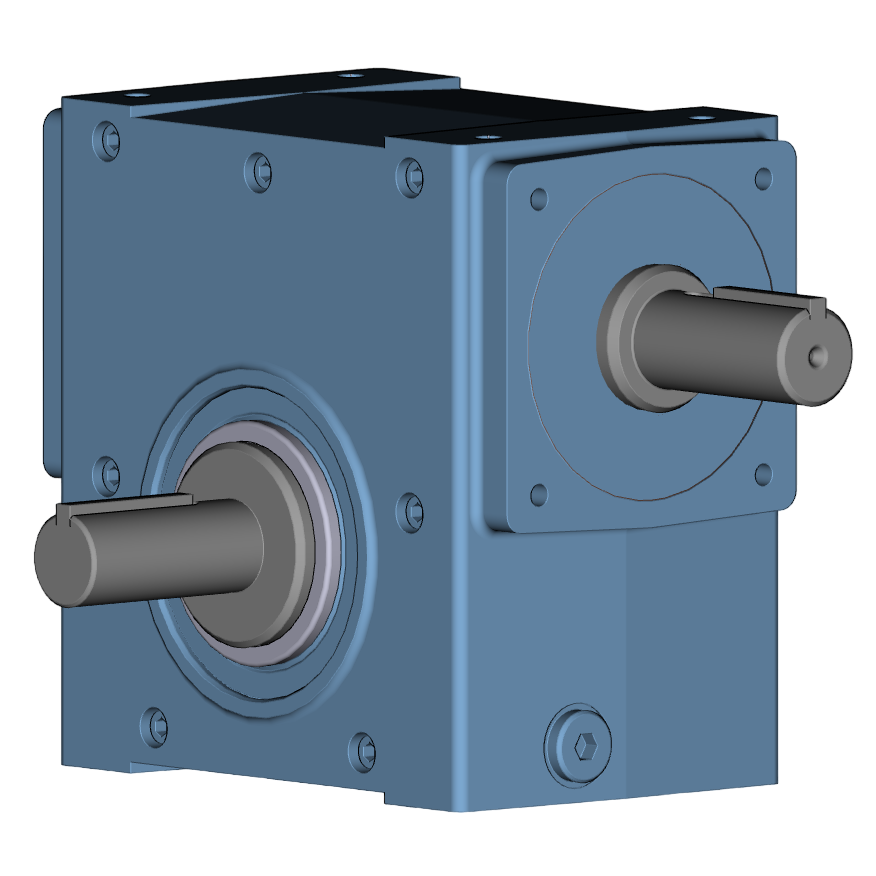

Cone Drive Right Angle Worm Gearbox
1.54" Center Distance
30:1 Ratio
0.75" Solid Input Shaft
0.75" Left Hand Extended Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 58
Maximum Input Horsepower: 0.67
Maximum Output Torque: 494 lb-in
Efficiency: 68%
Cone Drive Right Angle Worm Gearbox
1.54" Center Distance
30:1 Ratio
0.75" Solid Input Shaft
0.75" Left Hand Extended Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 58
Maximum Input Horsepower: 0.67
Maximum Output Torque: 494 lb-in
Efficiency: 68%
Cone Drive Right Angle Worm Gearbox
1.54" Center Distance
30:1 Ratio
0.75" Solid Input Shaft
0.75" Left Hand Extended Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 58
Maximum Input Horsepower: 0.67
Maximum Output Torque: 494 lb-in
Efficiency: 68%
