B031140.WANVB

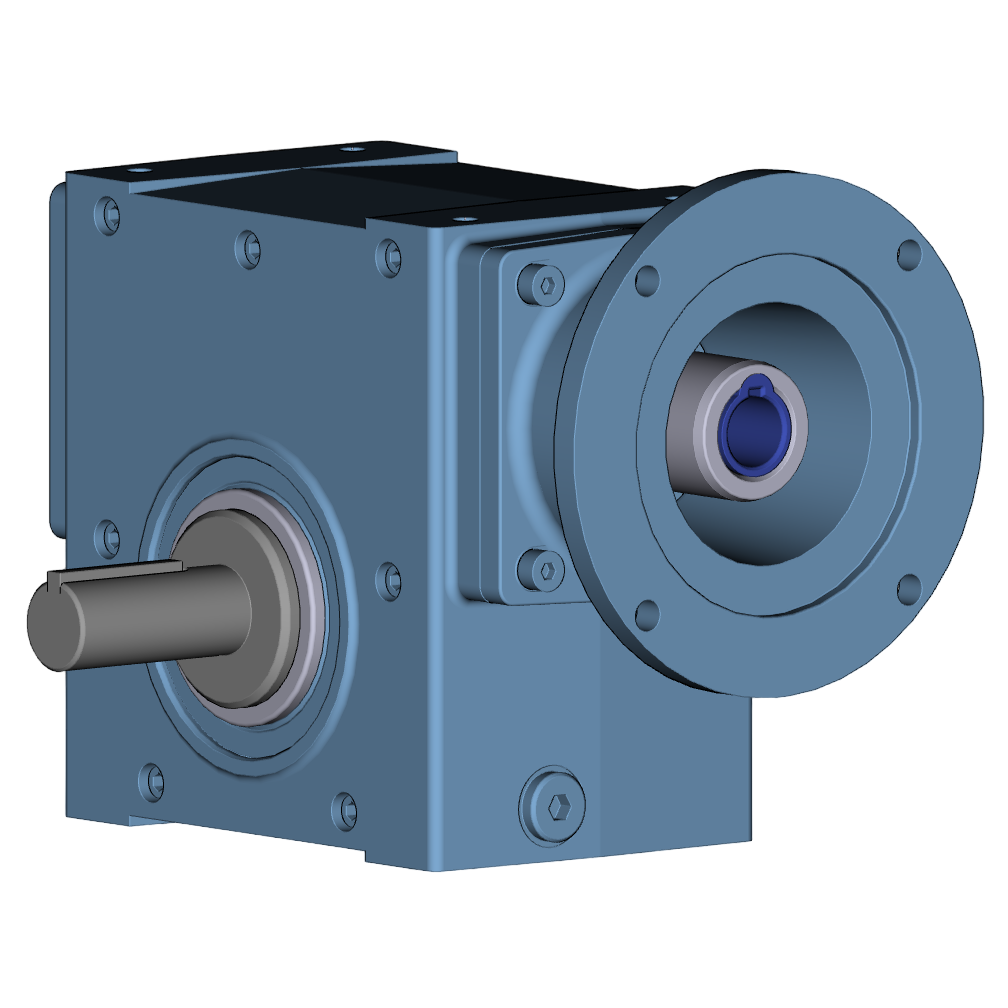

Cone Drive Right Angle Worm Gearbox

• 1.54" Center Distance

• 40:1 Ratio

• NEMA 140TC Motor Adapter Input

• 0.75" Left Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 44

• Maximum Input Horsepower: 0.51

• Maximum Output Torque: 444 lb-in

• Efficiency: 60%
