B031140.WRM-1
$463.52

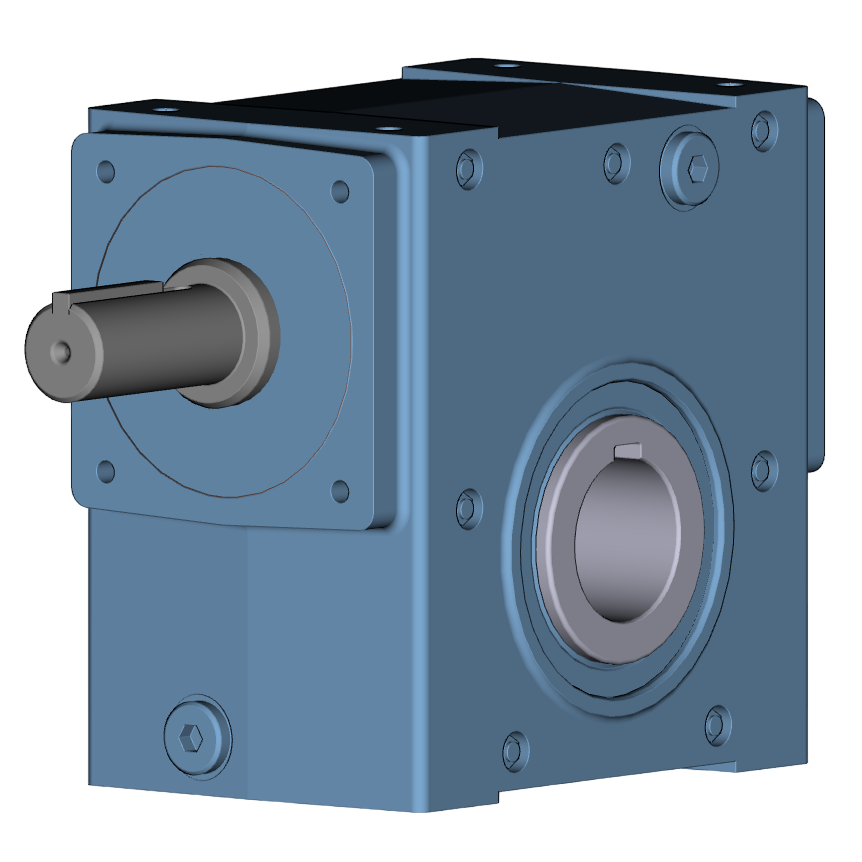

Cone Drive Right Angle Worm Gearbox
1.54" Center Distance
40:1 Ratio
0.75" Solid Input Shaft
25mm" Hollow Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 44
Maximum Input Horsepower: 0.51
Maximum Output Torque: 444 lb-in
Efficiency: 60%
Quantity:
Cone Drive Right Angle Worm Gearbox
1.54" Center Distance
40:1 Ratio
0.75" Solid Input Shaft
25mm" Hollow Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 44
Maximum Input Horsepower: 0.51
Maximum Output Torque: 444 lb-in
Efficiency: 60%
Cone Drive Right Angle Worm Gearbox
1.54" Center Distance
40:1 Ratio
0.75" Solid Input Shaft
25mm" Hollow Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 44
Maximum Input Horsepower: 0.51
Maximum Output Torque: 444 lb-in
Efficiency: 60%
