B03115.0WANVB

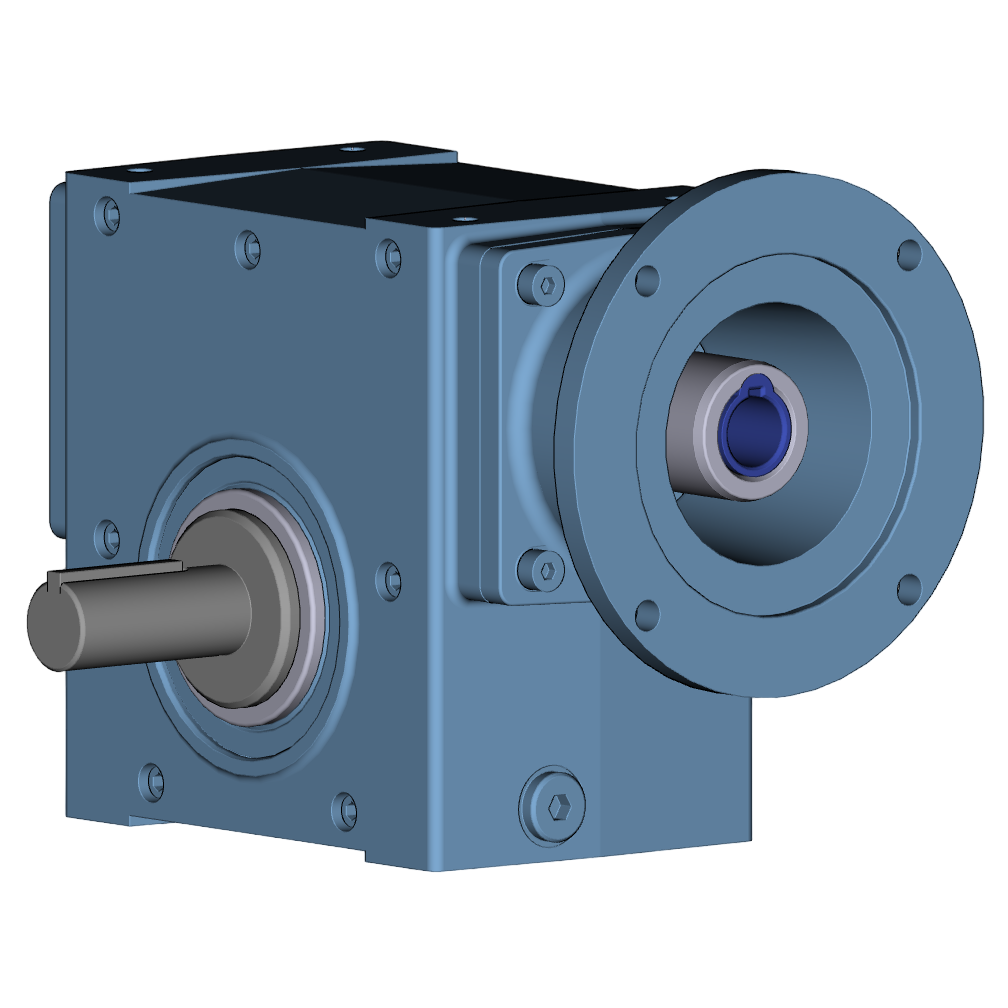

Cone Drive Right Angle Worm Gearbox

• 1.54" Center Distance

• 5:1 Ratio

• NEMA 140TC Motor Adapter Input

• 0.75" Left Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 350

• Maximum Input Horsepower: 2.51

• Maximum Output Torque: 401 lb-in

• Efficiency: 89%
