B03115.0WRN-B

$518.76

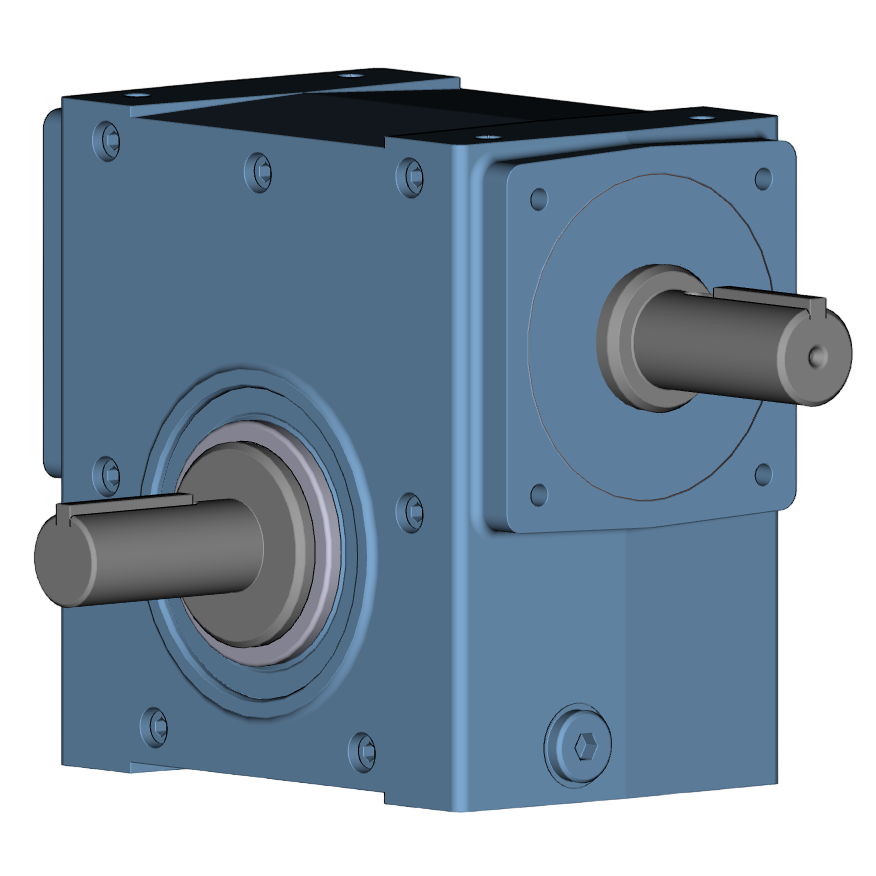

Cone Drive Right Angle Worm Gearbox

  • 1.54" Center Distance

  • 5:1 Ratio

  • 0.75" Solid Input Shaft

  • 0.75" Left Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

  • Output Speed (RPM): 350

  • Maximum Input Horsepower: 2.51

  • Maximum Output Torque: 401 lb-in

  • Efficiency: 89%

3D File

2D Dimensional PDF

Additional Resources
