B031150.WAFX1

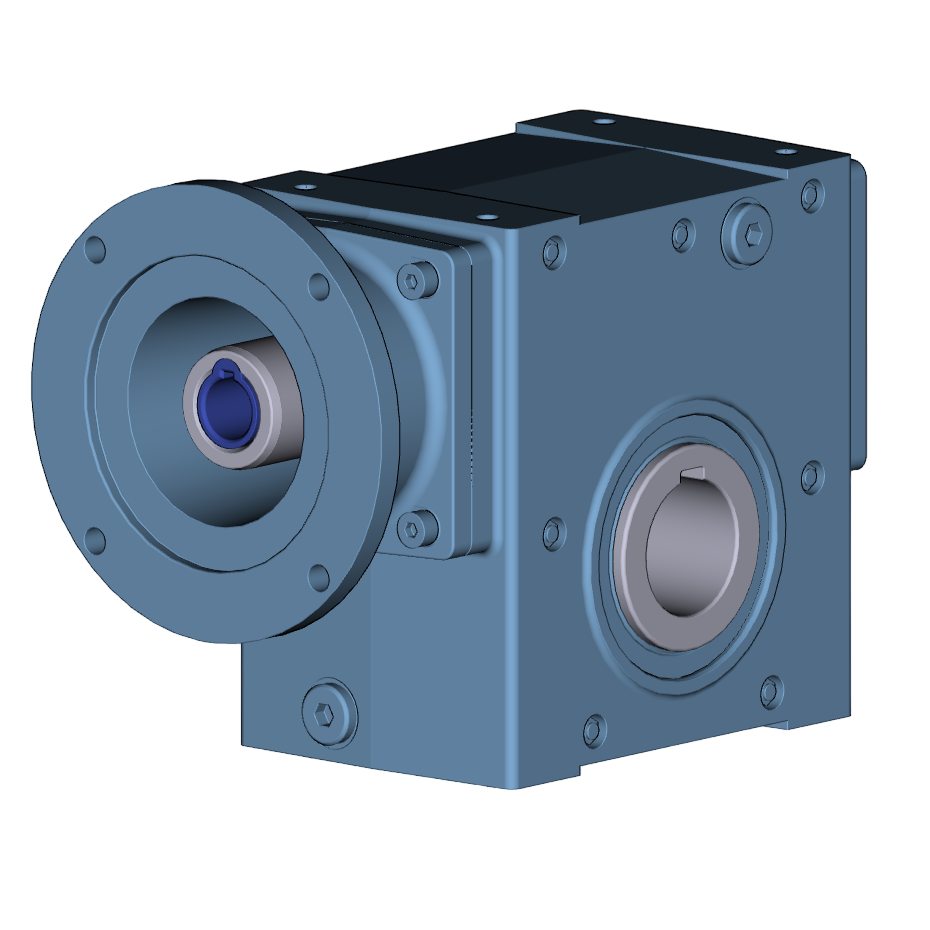

Cone Drive Right Angle Worm Gearbox
1.54" Center Distance
50:1 Ratio
NEMA 180TC Motor Adapter Input
0.875" Hollow Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 35
Maximum Input Horsepower: 0.44
Maximum Output Torque: 434 lb-in
Efficiency: 54%
