B031150.WRN-B

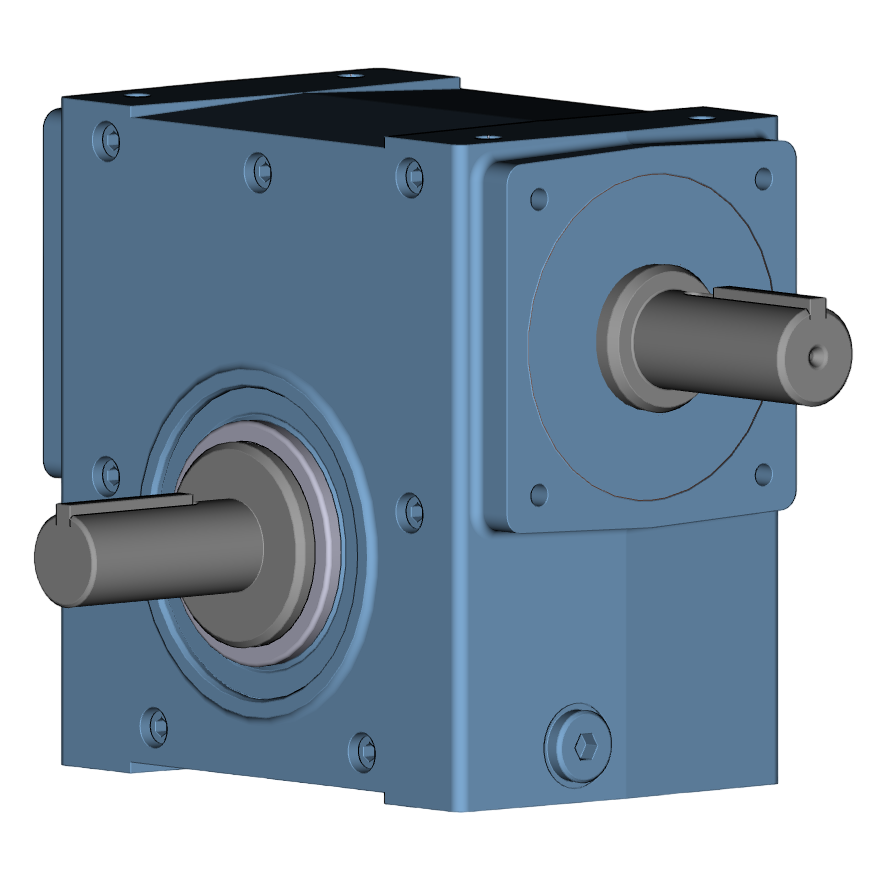

Cone Drive Right Angle Worm Gearbox
1.54" Center Distance
50:1 Ratio
0.75" Solid Input Shaft
0.75" Left Hand Extended Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 35
Maximum Input Horsepower: 0.44
Maximum Output Torque: 434 lb-in
Efficiency: 54%
