B031160.WANVA

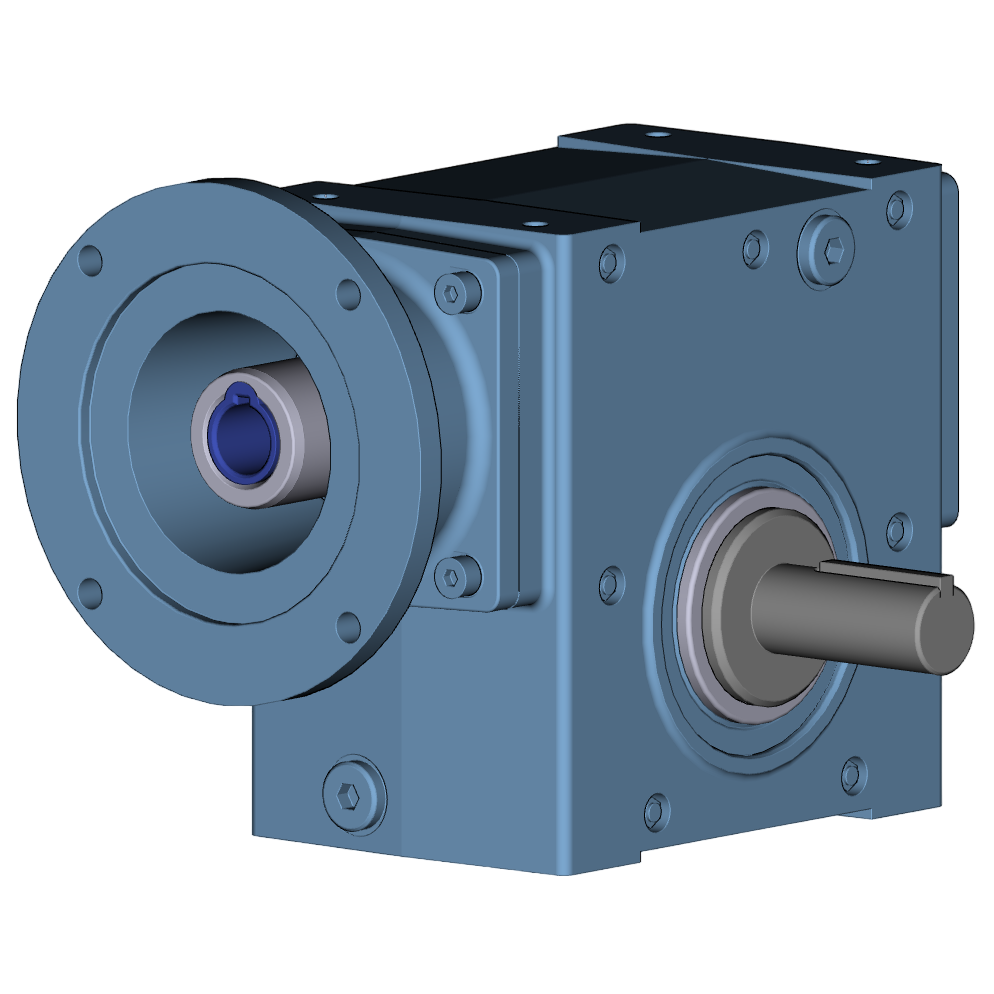

Cone Drive Right Angle Worm Gearbox

• 1.54" Center Distance

• 60:1 Ratio

• NEMA 140TC Motor Adapter Input

• 0.75" Right Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 29

• Maximum Input Horsepower: 0.38

• Maximum Output Torque: 404 lb-in

• Efficiency: 49%
