B03117.5WANXB

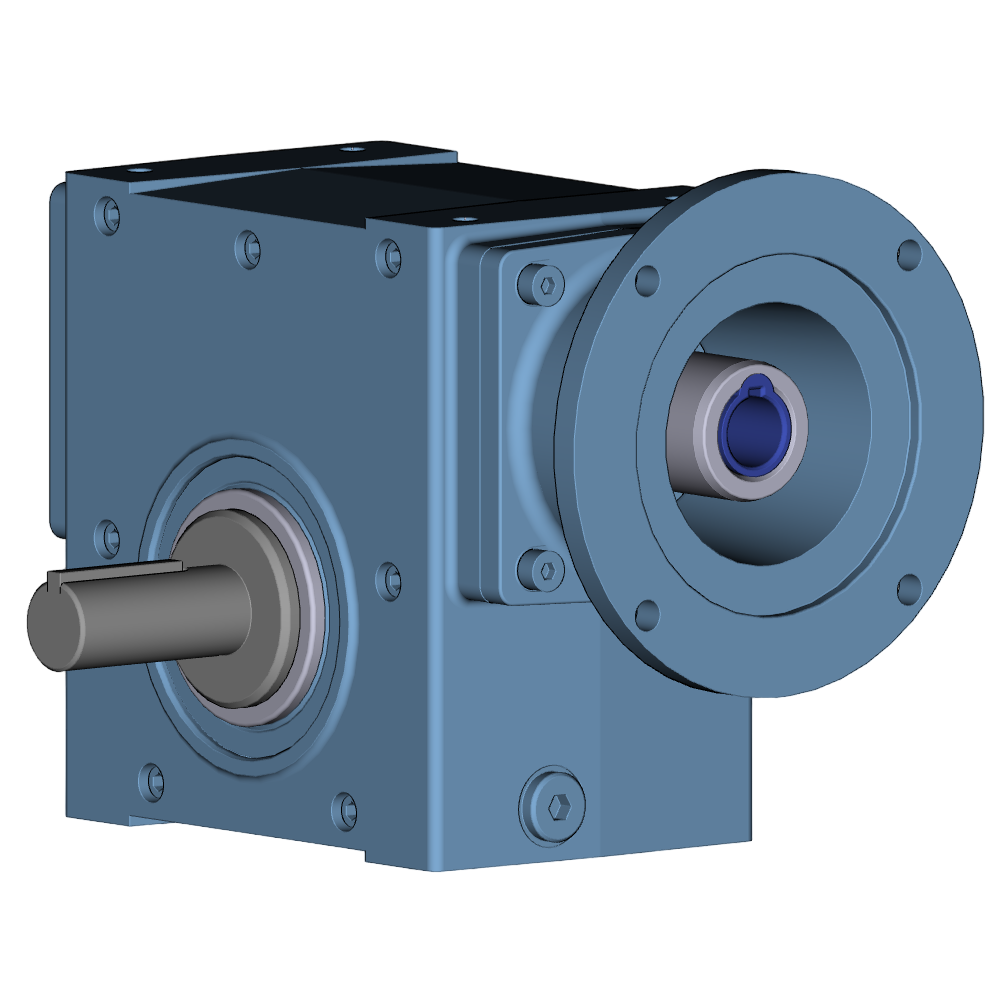

Cone Drive Right Angle Worm Gearbox

• 1.54" Center Distance

• 7.5:1 Ratio

• NEMA 180TC Motor Adapter Input

• 0.75" Left Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 233

• Maximum Input Horsepower: 1.85

• Maximum Output Torque: 433 lb-in

• Efficiency: 86%
