B041115.WAMX1

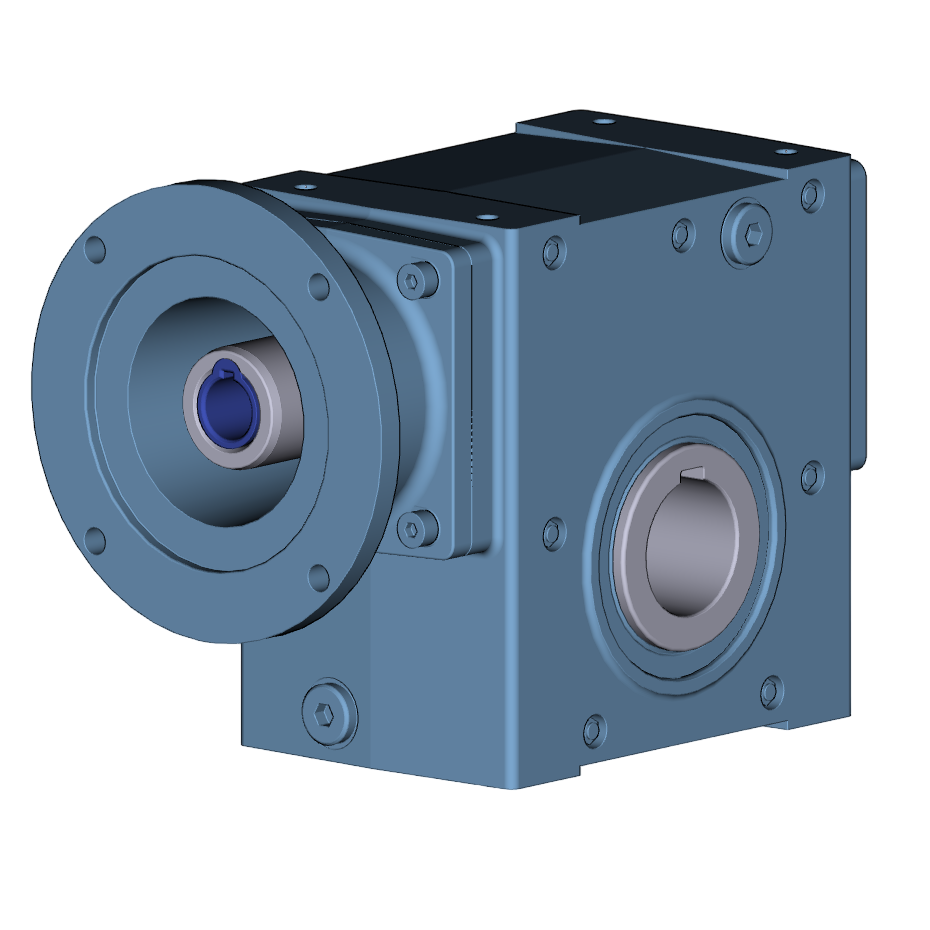

Cone Drive Right Angle Worm Gearbox
1.75" Center Distance
15:1 Ratio
NEMA 180TC Motor Adapter Input
35mm" Hollow Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 117
Maximum Input Horsepower: 1.51
Maximum Output Torque: 674 lb-in
Efficiency: 82%
