B041115.WARX1

$670.68

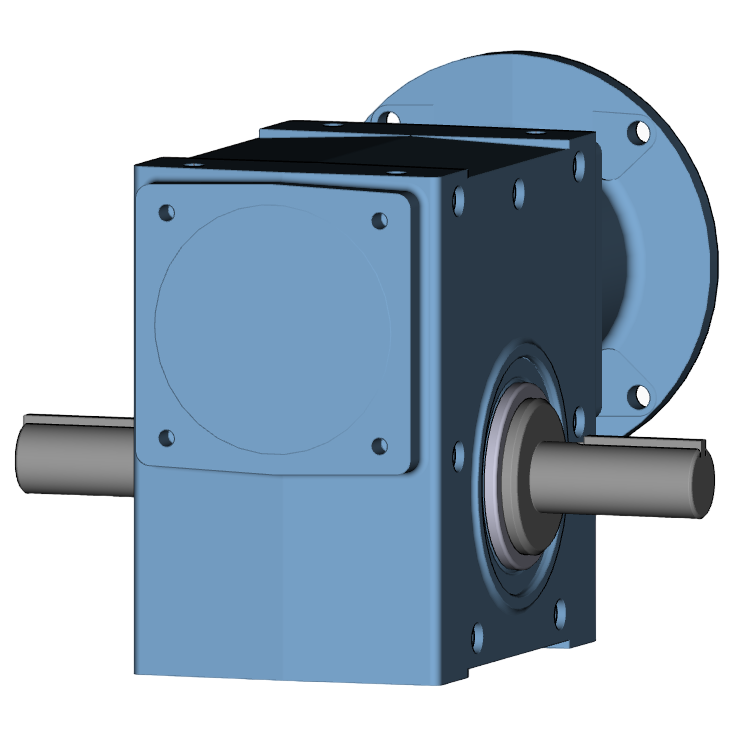

Cone Drive Right Angle Worm Gearbox

  • 1.75" Center Distance

  • 15:1 Ratio

  • NEMA 180TC Motor Adapter Input

  • 0.875" Double Extended Output Shaft

Ratings Based On 1750 RPM Motor:

  • Output Speed (RPM): 117

  • Maximum Input Horsepower: 1.51

  • Maximum Output Torque: 674 lb-in

  • Efficiency: 82%

3D File

2D Dimensional PDF

Additional Resources

Quantity:
Add To Cart
