B041120.WAQVA

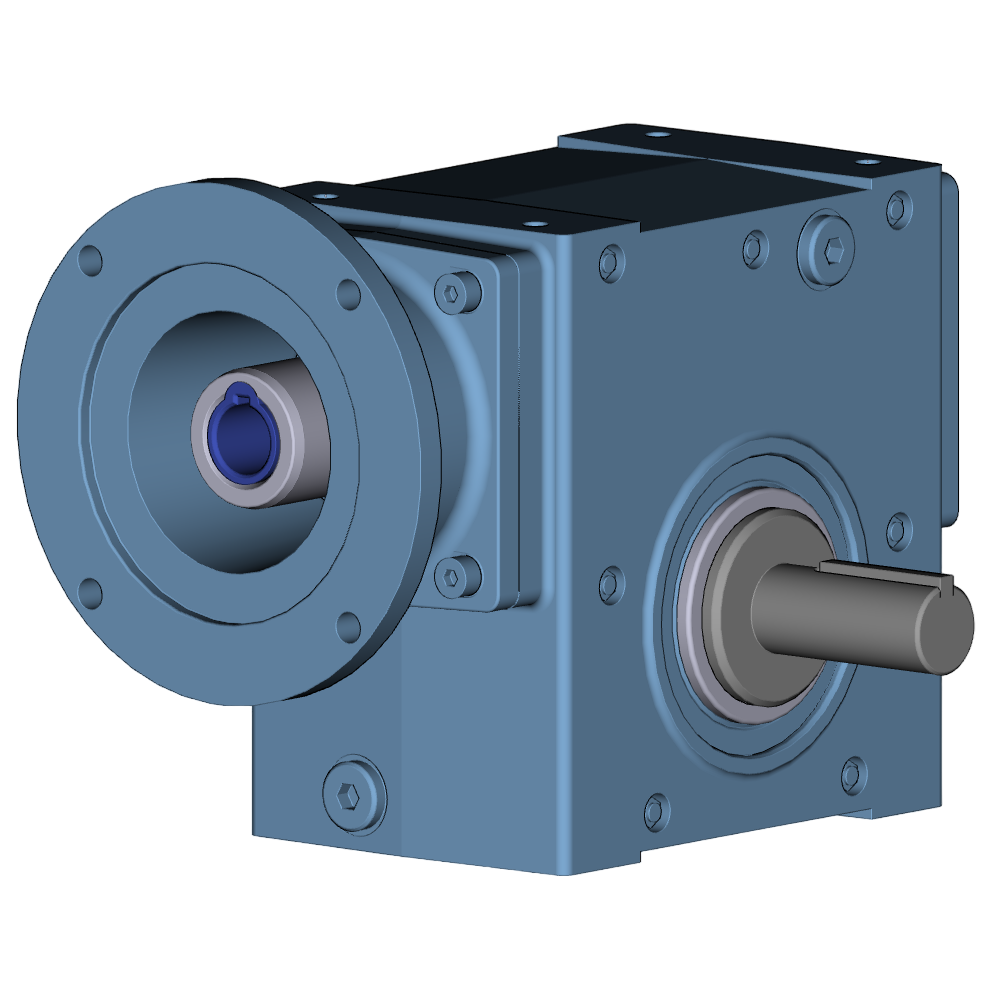

Cone Drive Right Angle Worm Gearbox

• 1.75" Center Distance

• 20:1 Ratio

• NEMA 140TC Motor Adapter Input

• 0.875" Right Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 88

• Maximum Input Horsepower: 1.2

• Maximum Output Torque: 675 lb-in

• Efficiency: 78%
