B041120.WAQXA

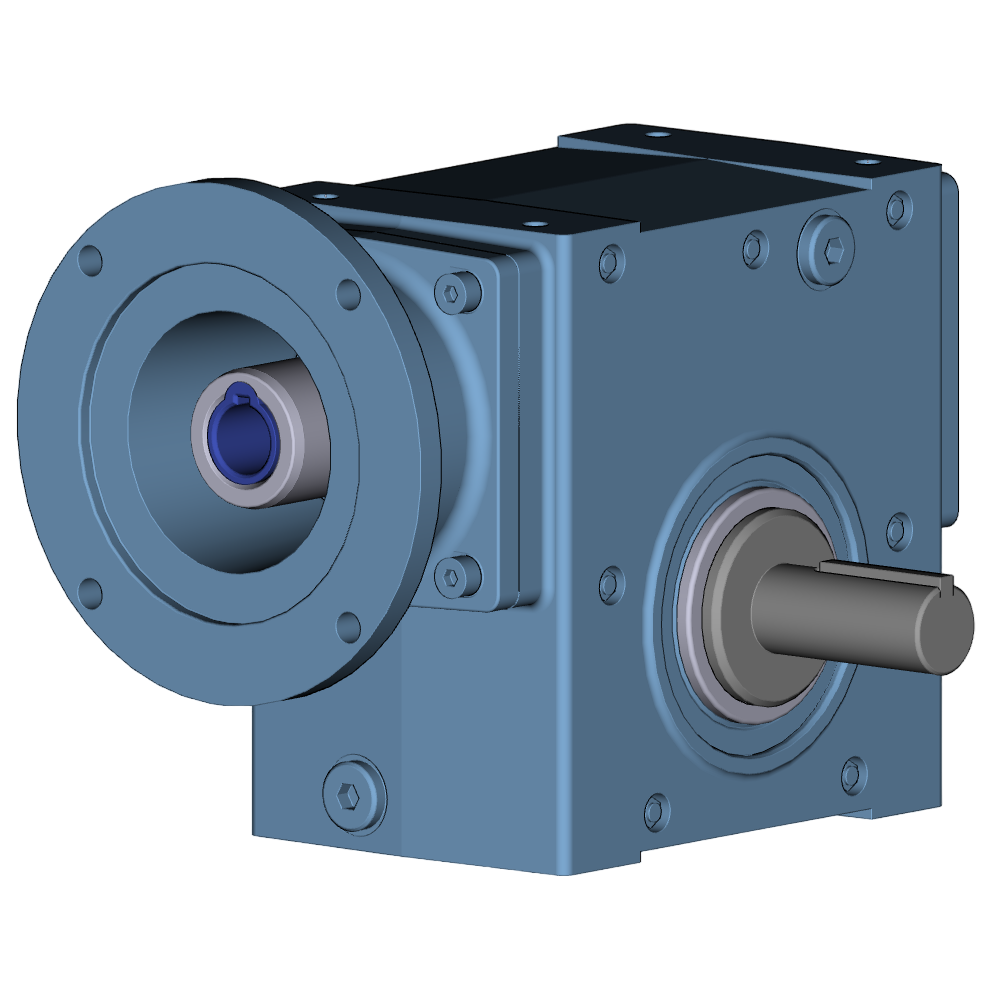

Cone Drive Right Angle Worm Gearbox
1.75" Center Distance
20:1 Ratio
NEMA 180TC Motor Adapter Input
0.875" Right Hand Extended Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 88
Maximum Input Horsepower: 1.2
Maximum Output Torque: 675 lb-in
Efficiency: 78%
Cone Drive Right Angle Worm Gearbox
1.75" Center Distance
20:1 Ratio
NEMA 180TC Motor Adapter Input
0.875" Right Hand Extended Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 88
Maximum Input Horsepower: 1.2
Maximum Output Torque: 675 lb-in
Efficiency: 78%
Cone Drive Right Angle Worm Gearbox
1.75" Center Distance
20:1 Ratio
NEMA 180TC Motor Adapter Input
0.875" Right Hand Extended Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 88
Maximum Input Horsepower: 1.2
Maximum Output Torque: 675 lb-in
Efficiency: 78%
