B041125.WAPX1

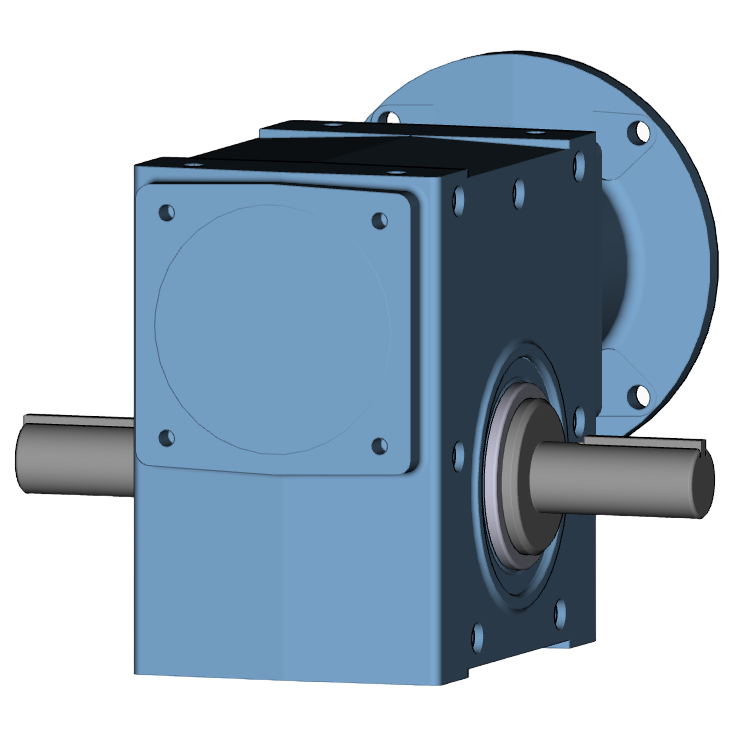

Cone Drive Right Angle Worm Gearbox

• 1.75" Center Distance

• 25:1 Ratio

• NEMA 180TC Motor Adapter Input

• 1.00" Double Extended Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 70

• Maximum Input Horsepower: 1.08

• Maximum Output Torque: 726 lb-in

• Efficiency: 75%
