B041130.WANXA

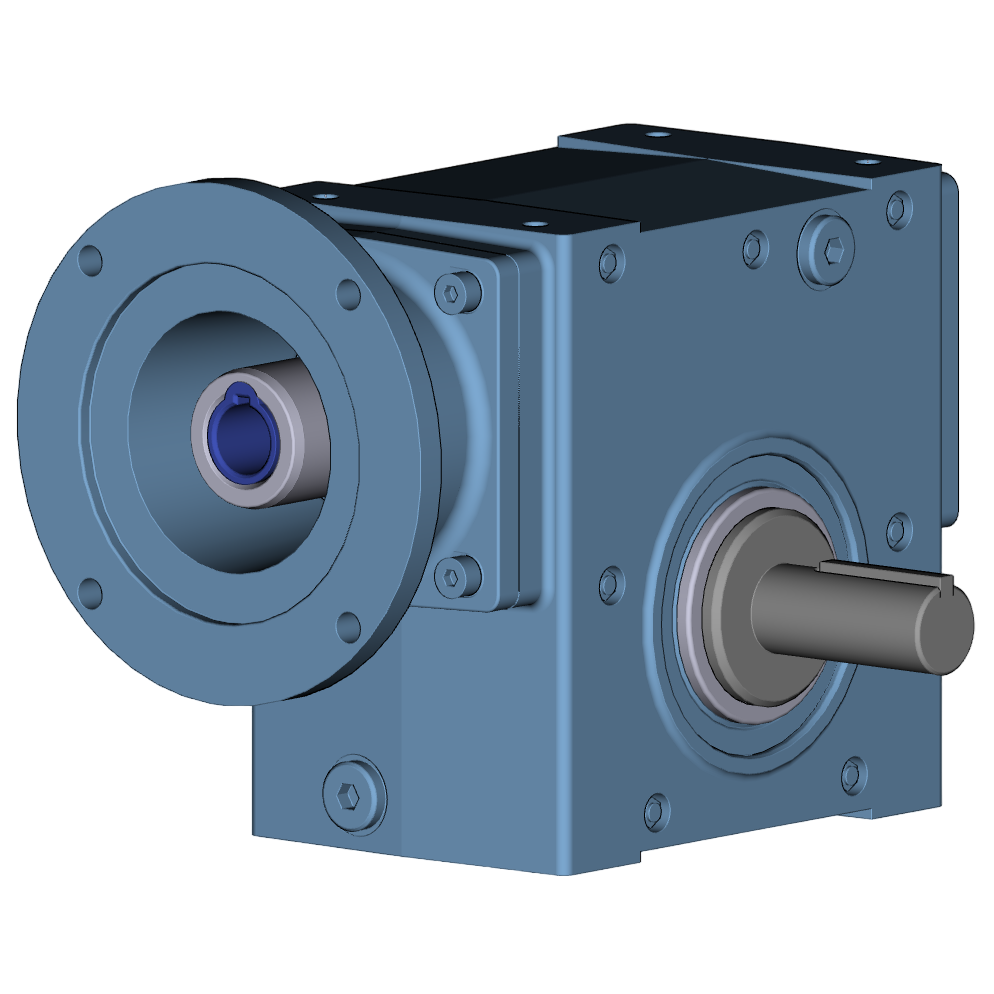

Cone Drive Right Angle Worm Gearbox

• 1.75" Center Distance

• 30:1 Ratio

• NEMA 180TC Motor Adapter Input

• 1.00" Right Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 58

• Maximum Input Horsepower: 0.9

• Maximum Output Torque: 700 lb-in

• Efficiency: 72%
