B041130.WRQ-B

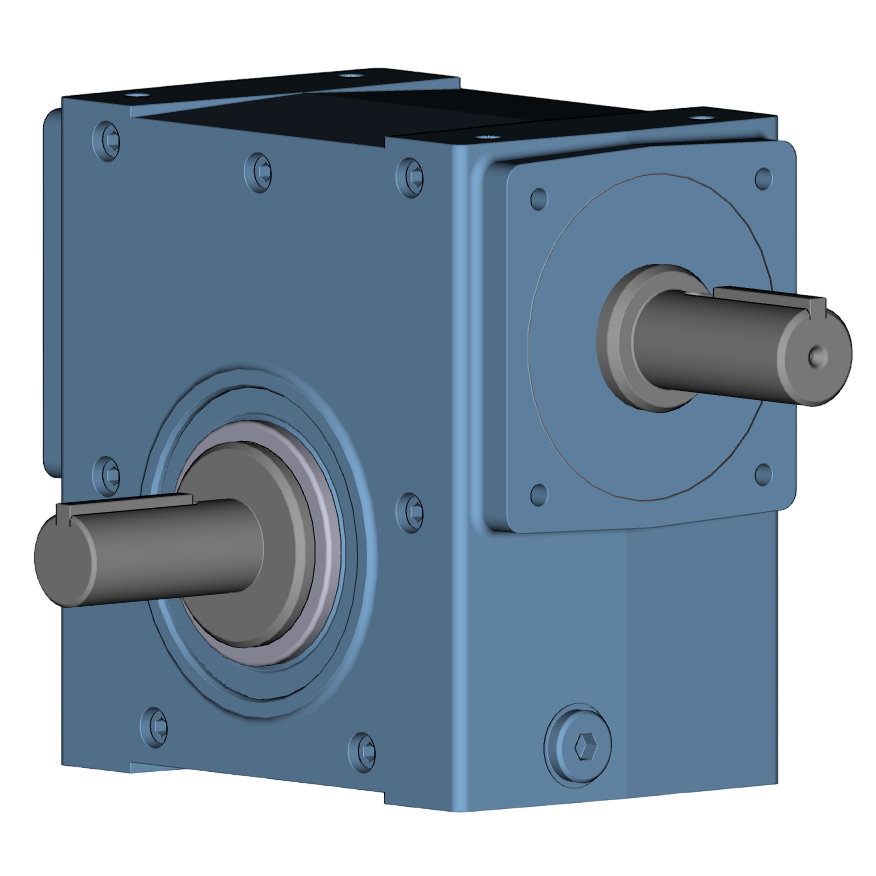

Cone Drive Right Angle Worm Gearbox
1.75" Center Distance
30:1 Ratio
0.75" Solid Input Shaft
0.875" Left Hand Extended Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 58
Maximum Input Horsepower: 0.9
Maximum Output Torque: 700 lb-in
Efficiency: 72%
Cone Drive Right Angle Worm Gearbox
1.75" Center Distance
30:1 Ratio
0.75" Solid Input Shaft
0.875" Left Hand Extended Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 58
Maximum Input Horsepower: 0.9
Maximum Output Torque: 700 lb-in
Efficiency: 72%
Cone Drive Right Angle Worm Gearbox
1.75" Center Distance
30:1 Ratio
0.75" Solid Input Shaft
0.875" Left Hand Extended Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 58
Maximum Input Horsepower: 0.9
Maximum Output Torque: 700 lb-in
Efficiency: 72%
