B041140.WAMT1

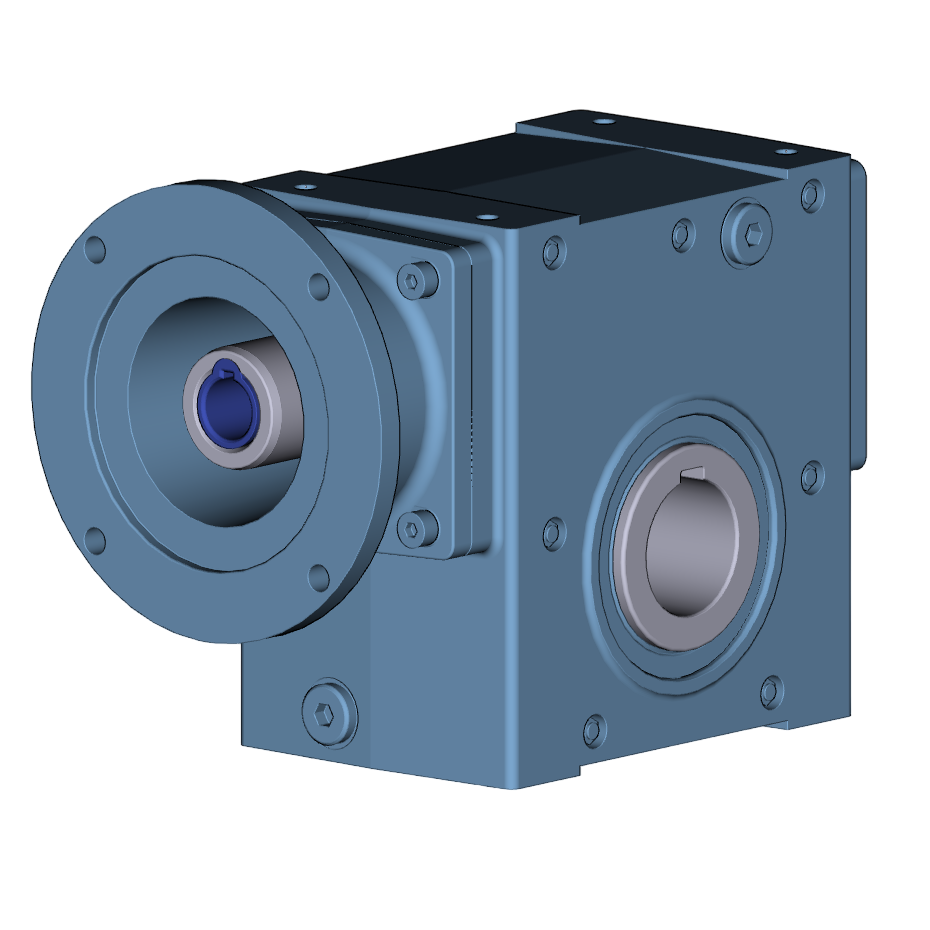

Cone Drive Right Angle Worm Gearbox

• 1.75" Center Distance

• 40:1 Ratio

• NEMA 56C Motor Adapter Input

• 35mm" Hollow Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 44

• Maximum Input Horsepower: 0.68

• Maximum Output Torque: 630 lb-in

• Efficiency: 64%

3D File

2D Dimensional PDF

Additional Resources
