B04115.0WRN-B

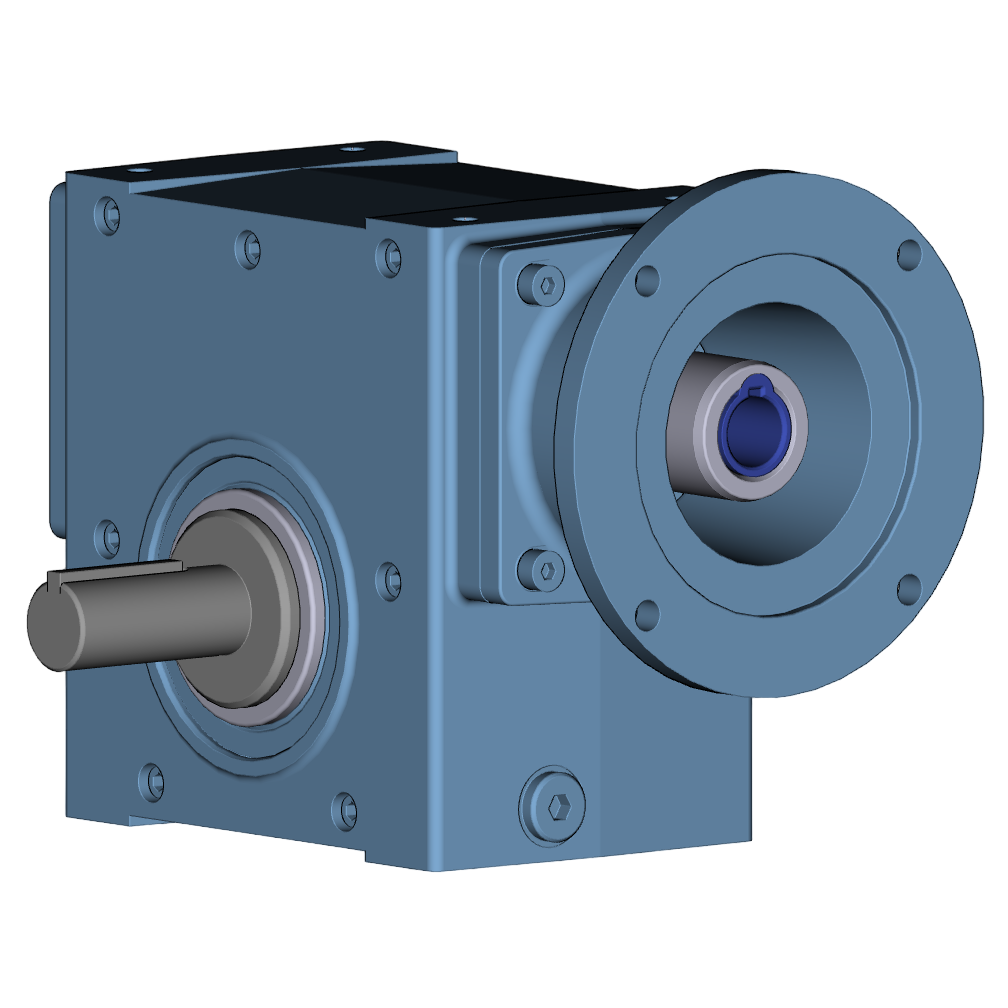

Cone Drive Right Angle Worm Gearbox

• 1.75" Center Distance

• 5:1 Ratio

• NEMA 180TC Motor Adapter Input

• 1.00" Left Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 350

• Maximum Input Horsepower: 3.45

• Maximum Output Torque: 559 lb-in

• Efficiency: 90%
