B041150.WANXB

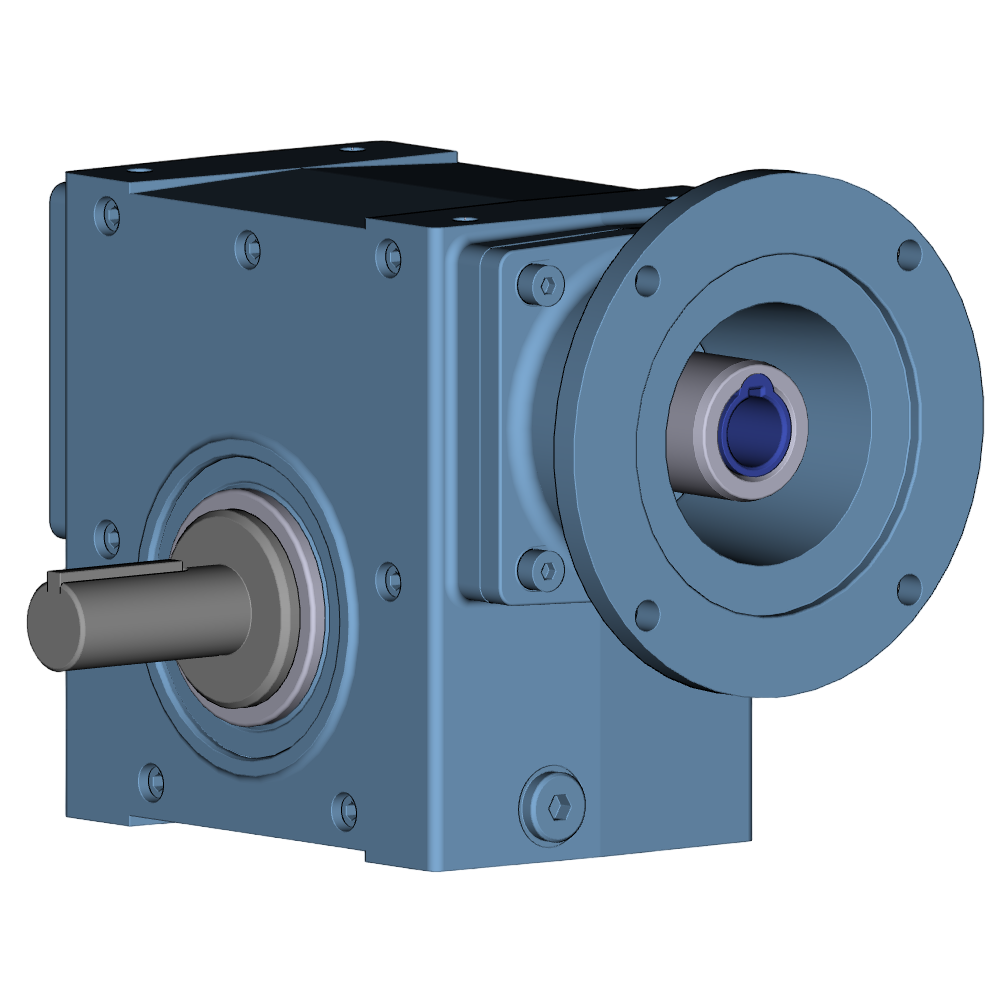

Cone Drive Right Angle Worm Gearbox

• 1.75" Center Distance

• 50:1 Ratio

• NEMA 180TC Motor Adapter Input

• 1.00" Left Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 35

• Maximum Input Horsepower: 0.58

• Maximum Output Torque: 610 lb-in

• Efficiency: 58%
