B041150.WAQXA

$651.05

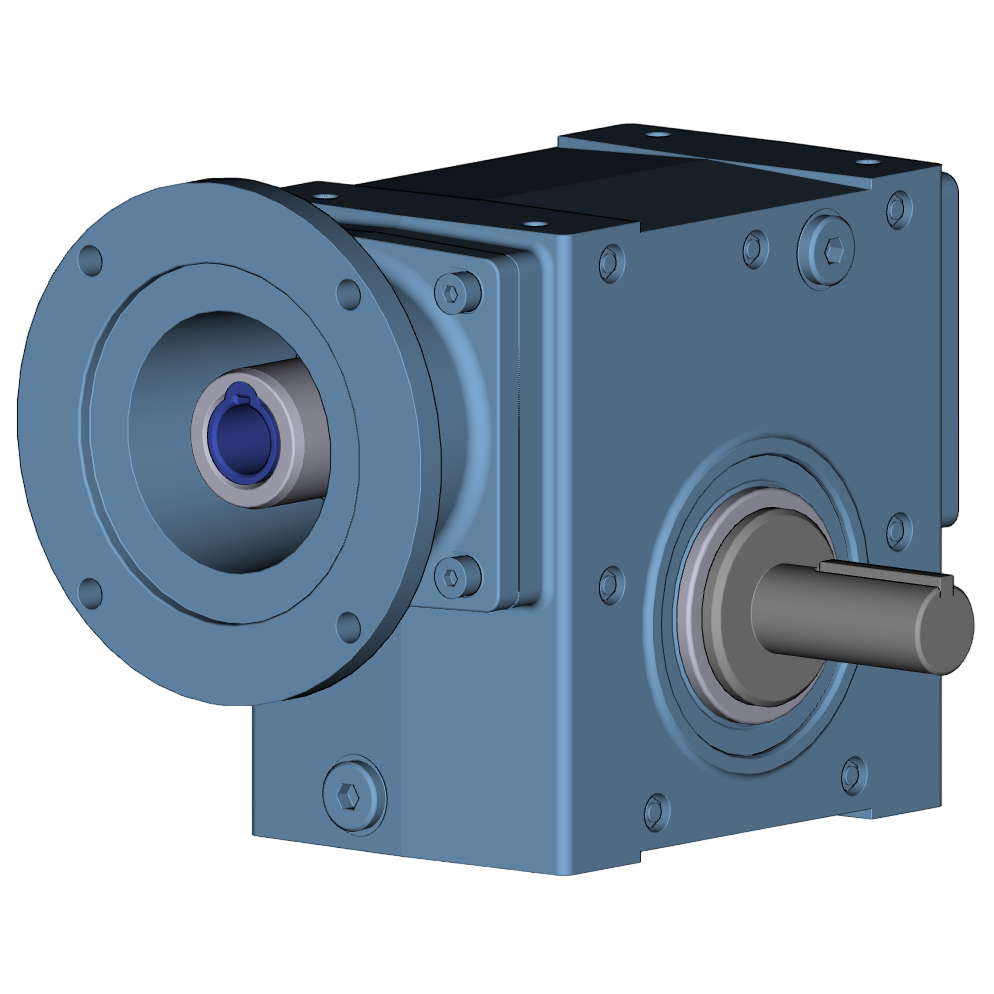

Cone Drive Right Angle Worm Gearbox

  • 1.75" Center Distance

  • 50:1 Ratio

  • NEMA 180TC Motor Adapter Input

  • 0.875" Right Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

  • Output Speed (RPM): 35

  • Maximum Input Horsepower: 0.58

  • Maximum Output Torque: 610 lb-in

  • Efficiency: 58%

3D File

2D Dimensional PDF

Additional Resources

Quantity:
Add To Cart
