B041160.WAMT1
$571.27

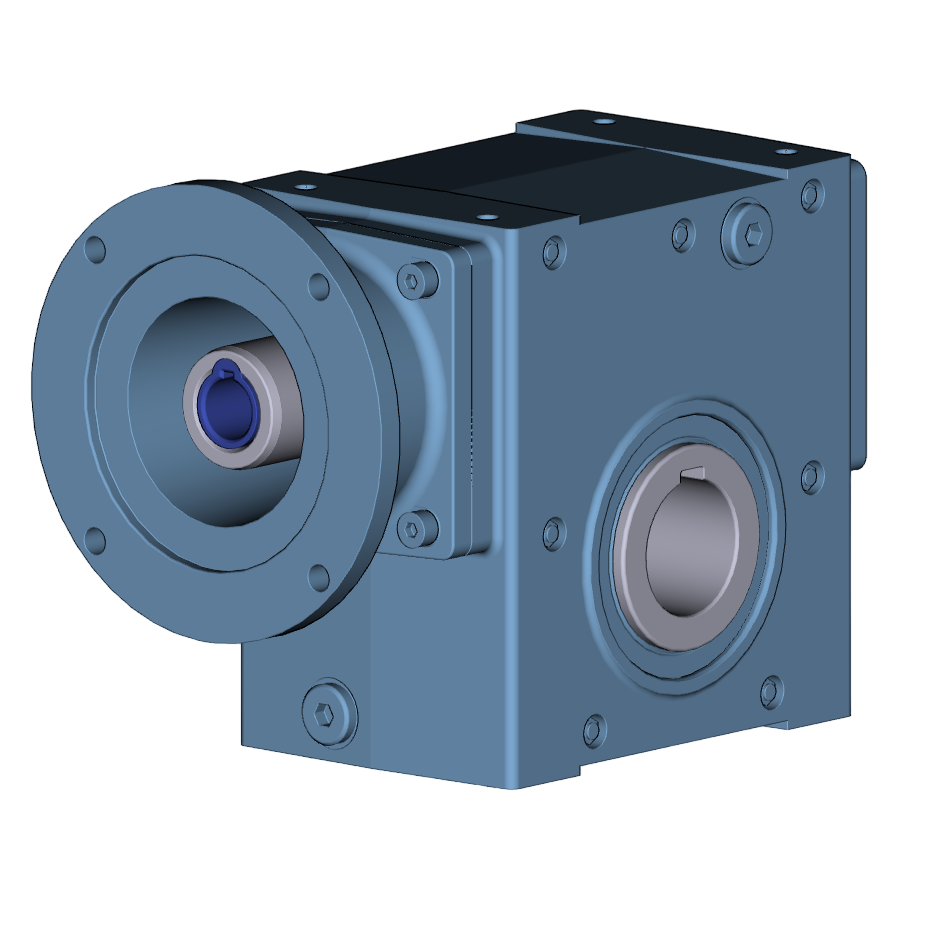

Cone Drive Right Angle Worm Gearbox
1.75" Center Distance
60:1 Ratio
NEMA 56C Motor Adapter Input
35mm" Hollow Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 29
Maximum Input Horsepower: 0.5
Maximum Output Torque: 570 lb-in
Efficiency: 53%
Quantity:
Cone Drive Right Angle Worm Gearbox
1.75" Center Distance
60:1 Ratio
NEMA 56C Motor Adapter Input
35mm" Hollow Output Shaft
Ratings Based On 1750 RPM Motor:
Output Speed (RPM): 29
Maximum Input Horsepower: 0.5
Maximum Output Torque: 570 lb-in
Efficiency: 53%
