B041160.WAQXA

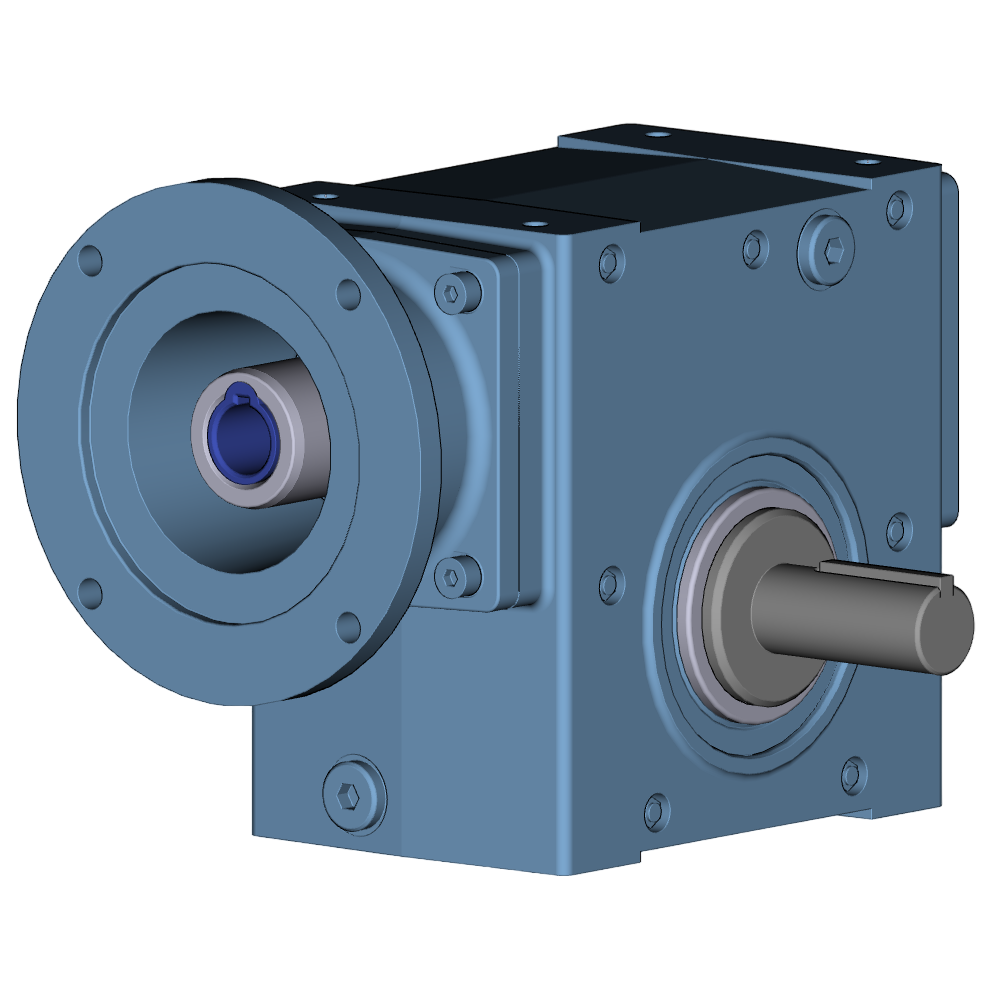

Cone Drive Right Angle Worm Gearbox

• 1.75" Center Distance

• 60:1 Ratio

• NEMA 180TC Motor Adapter Input

• 0.875" Right Hand Extended Output Shaft

Ratings Based On 1750 RPM Motor:

• Output Speed (RPM): 29

• Maximum Input Horsepower: 0.5

• Maximum Output Torque: 570 lb-in

• Efficiency: 53%
