B04117.5WAPV1

$636.30

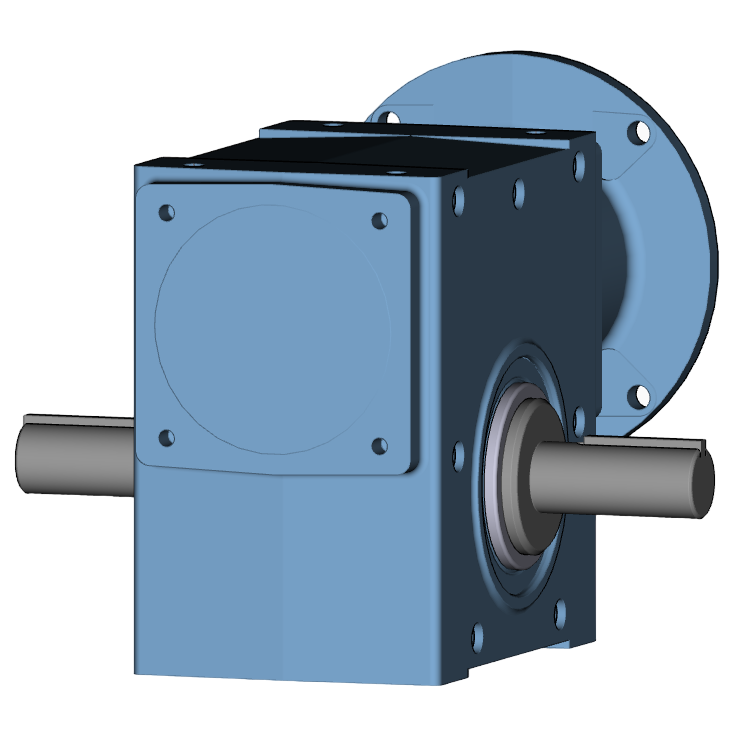

Cone Drive Right Angle Worm Gearbox

  • 1.75" Center Distance

  • 7.5:1 Ratio

  • NEMA 140TC Motor Adapter Input

  • 1.00" Double Extended Output Shaft

Ratings Based On 1750 RPM Motor:

  • Output Speed (RPM): 233

  • Maximum Input Horsepower: 2.54

  • Maximum Output Torque: 603 lb-in

  • Efficiency: 88%

3D File

2D Dimensional PDF

Additional Resources

Quantity:
Add To Cart
